Xyc 3 Vehicle Mounted Hydraulic Core Drilling Rig For China - China

1 - Features of XYC-3 vehicle-mounted hydraulic core drilling rig

XYC-3 is a vehicle-mounted hydraulic core drilling rig.

The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis.

The layout is reasonable and compact.

And the operation is simple.

The drilling rig is equipped with high pressure and large flow BW-250 pump, which ensures the drilling depth and borehole diameter.

2 - Applications of XYC-3 vehicle-mounted hydraulic core drilling rig

·geological survey and exploration

·road and high-rise building foundation exploration

·all kinds of concrete structure inspection holes

·river embankments

·subgrade grouting holes

·drilling and direct grouting

·civil use water wells

·ground temperature central air conditioners

3 - Parameters of XYC-3 vehicle-mounted hydraulic core drilling rig

XYC-3 vehicle-mounted hydraulic core drilling rig

Drilling depth 30-600

Drill hole diameter 300-75

Diameter of the end hole 75

Drill angle 90-75

Spindle forward core speed 30-1050

Spindle reverse core speed 29-137

Spindle stroke 600

Main winch lifting force

(with single line) 3000

Main winch rope capacity 65

Lifting speed 0.3-1.9

Rope diameter 12.5

Drill mast height 7000

Drill effective height 6500

Driving drilling rod 59*53, 70*63, 79*89

Drilling rod diameter 42/50/60

Weight 3500

Engine Model: Yunnei YN27 BW-250 mud pump Rated flow (l/min) 250 Rated power(mpa) 7 Driving power(kw) 15 Host weight(kg) 500 Dimension(mm) 1110*994*665

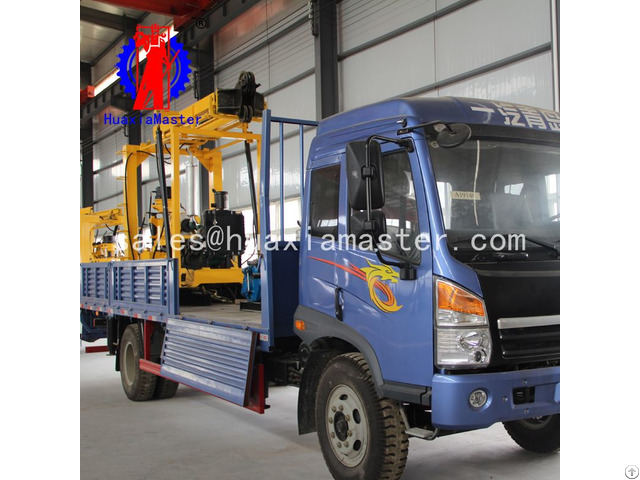

Chassis vehicle(Pictures of vehicle-mounted drilling rigs for reference only) Shandong Master Machinery Group Co., Ltd.
