Xyc 3 Vehicle Mounted Hydraulic Core Drilling Rig Price - China

1 - Main features of XYC-3 vehicle-mounted drilling rig

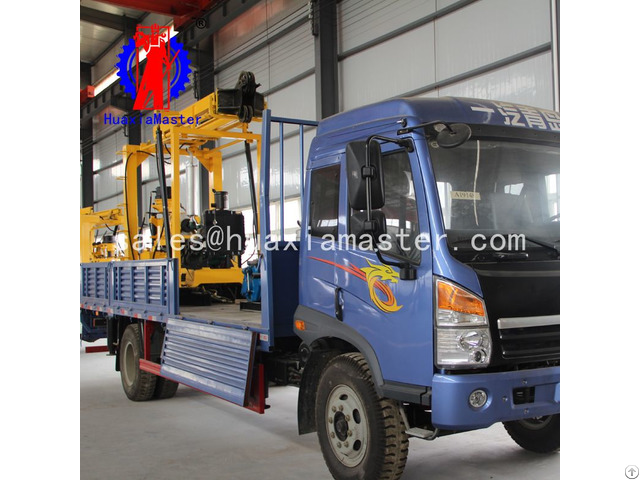

XYC-3 vehicle-mounted core drilling rig is a multi-function hydraulic vertical shaft rotary drilling rig.

The car chassis adopts Qingdao liberation truck chassis.

The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis.

The layout is reasonable and compact.

And the operation is simple.

The rig is equipped with high pressure and large flow BW-250 pump, which ensures the drilling depth and borehole diameter.

2 - Applications of XYC-3 vehicle-mounted drilling rig

geological survey and exploration

road and high-rise building foundation exploration

drilling and direct grouting

all kinds of concrete structure inspection holes

river embankments

subgrade grouting holes

civil use water wells

ground temperature central air conditioners

3 - Parameters of XYC-3 vehicle-mounted drilling rig

XYC-3 vehicle-mounted drilling rig

Drill depth 30-600

Drill hole diameter 300-75

Diameter of the end hole 75

Drill angle 90-75

Spindle forward rotary speed 30-1050

Spindle reverse rotary speed 29-137

Spindle stroke 600

Main winch lifting force

(with single line) 3000

Main winch rope capacity 65

Lifting speed 0.3-1.9

Rope diameter 12.5

Drill mast height 7000

Drill effective height 6500

Driving drilling rod 59*53, 70*63, 79*89

Drilling rod diameter 42/50/60

Weight 3500

Engine Model: Yunnei YN27 BW-250 mud pump Rated flow (l/min) 250

Rated power(mpa) 7

Driving power(kw) 15

Host weight(kg) 500

Dimension(mm) 1110*994*665

Chassis

Model The liberation of Qingdao truck 180 HP 4X2 truck

Driving form 4*2

Engine Model BF4M2012-16E4

Emission standard GB17691-2005

Rated power (kw) 121

Rotary speed (r/min) 2200

External dimension (mm) 8998*2496*2900
