Xyc 3vehicle Mounted Drilling Rig Price - China

1 - The features of XYC-3 water well drilling rig

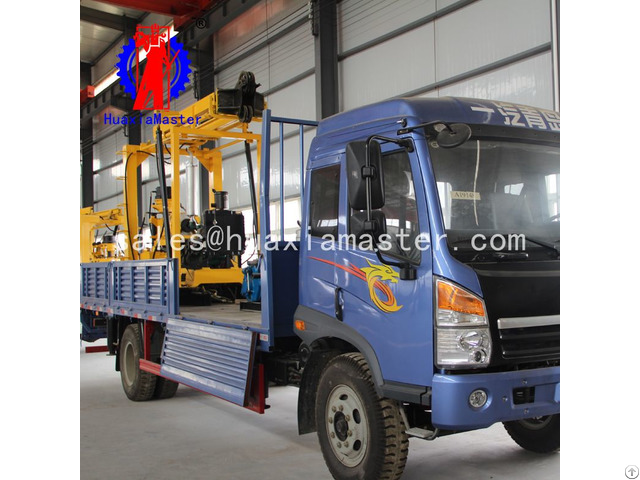

XYC-3 vehicle driller for multi function hydraulic vertical shaft rotary drilling rig.

The car chassis adopts Qingdao liberation new Sai long Zhong card truck chassis, drilling rig transmission system and hoist, mud pump and other important accessories installed on the chassis.

The layout is reasonable and compact, and the operation is simple.

The BW-250 slurry pump is equipped with high pressure and large flow, which ensures drilling depth and bore diameter.

The rig tower hydraulic lifting type automatic Telescopic rigs, safe and convenient operation.

The drilling machine self matching mobile device can realize the movement of the drill machine's own front and back, and it is convenient for the wellhead operation.

2 - The applications of XYC-3 vehicle-mounted water well drilling rig

Made in China water well, field irrigation well, engineering water well, precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.

3 - The specifications of XYC-3 water well drilling machine

XYC-3 water well drilling rig

Drilling depth 30-600

Drilling hole diameter 300-75

End hole diameter 75

Drilling angle 90-75

Vertical shaft forward rotary speed 30-1050

Vertical shaft reverse rotary speed 29-137

Vertical shaft stroke 600

Windlass lifting power (single rope) 3000

Windlass capability in terms of rope length 65

Lifting speed 0.3-1.9

Wire-rope diameter 12.5

Drilling tower height 7000

Effective drilling tower height 6500

Active drilling pipe 59*53, 70*63, 79*89

Drilling rod diameter 42/50/60

Drilling rig weight 3500

Engine model: Yunnei YN27

BW-250 mud pump rated flow (L/min) 250 rated power(mpa) 7 driving power(kw) 15 host weight(kg) 500 external dimension(mm) 1110*994*665 Chassis model qingdao liberation new cylon medium truck with 180hp 4X2 rail plate (CA1167PK2L2E4A80) driven-mode 4*2 engine model BF4M2012-16E4 emission standard GB3847-2005

GB17691-2005 rated power (kw) 121 rotary speed (r/min) 2200

External dimension (mm) 8998*2496*2900
