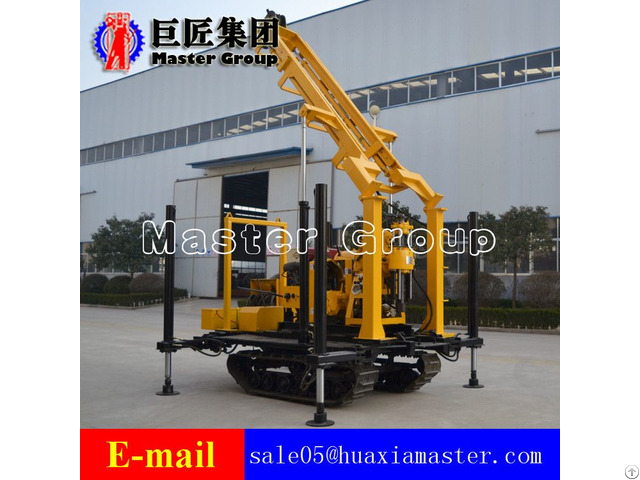

Xyd 130 Hydraulic Crawler Water Drilling Rig - China
price: 13600.00 Dollar US$
1 - The features of XYD-130 Hydraulic crawler drilling rig
The drilling rig adopts the automatic Telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.
The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly.
It can walk on urban roads without hurting the road surface.
The chassis is equipped with four high strength threaded legs (or hydraulic high leg).
The installation and adjustment is fast and convenient.
It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost and improves efficiency and works as auxiliary support.
The rig uses 48V electricty to start the diesel engine, which greatly reduces the labor usage, especially in the cold season.
When the diesel engine has difficulty activiting, this starting mode shows greater advantages.
2 - Technical parameters of XYD-130 crawler drilling rig
XYD-130 crawler drilling rig
Drilling depth 130m
Maximum opening diameter 220mm
Diameter of the end hole 75mm
Drilling rod caliber 50mm
Drilling angle 90°-75°
Drill weight (no include power) 2600kg
Spindle
Spindle speed 142/285/570 r/min
Spindle stroke 450mm
Hoist
Max single line hoisting capacity 1600kg
Single line lifting speed 0.41/0.82/1.64 m/s
Drum diameter 140mm
Wire rope diameter 13mm
Wire rope capacity 27m
Mud pump
Type horizontal single urn twin-action
Displacement 95 /77L/min
Work pressure 0.7mpa
Maximum pressure 1.2mpa
Water to exit caliber 20mm
Water inlet caliber 30mm
Triangle conveyer belt B1575mm
