Xyd 130 Hydraulic Hard Rock Drilling Machine - China

price: 15600.00 Dollar US$

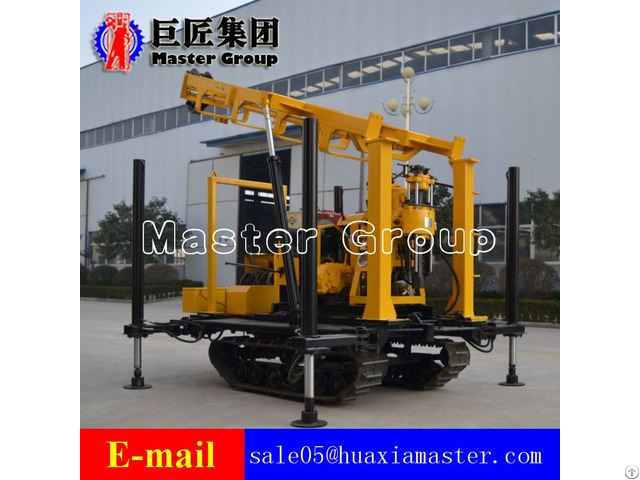

1 - The features of XYD-130 crawler drilling rig

The drilling machine adopts automatic Telescopic drilling tower, which is supported by two high-strength oil cylinders.

Save effort, safe and reliable, maximum for the user to create benefits.

The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce the vibration of the vehicle body, and reduce fuel consumption greatly.

It can walk on urban roads without hurting the road surface.

The chassis is equipped with four high-strength threaded legs (or hydraulic high leg).

The installation and adjustment is fast and convenient, it can be used for leveling of work plane, loading and unloading vehicle reduces the hoisting cost and improve efficiency, and can be used as auxiliary support when working.

The adoption of 48V electric starting diesel engine greatly reduces the labor intensity of the operator, especially in the cold season.

When the diesel engine starts difficult, it shows greater superiority.

2 - The specifications of XYD-130 crawler drilling rig XYD-130 crawler drilling rig

Drilling depth 130m

Maximum opening hole diameter 220mm

Drilling pipe diameter 50mm

End hole diameter 75mm

Drilling angle 90°-75°

Drilling rig weight 2600kg

Vertical Spindle

Spindle rotating speed 142 285 570r/min

Spindle stroke 450mm

Windlass

Maximum lifting weight of a single rope 1600kg

Lifting speed of a single rope 0.41 0.82 1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Drum capacity 27 M

Mud pump

Model horizontal single urn twin-action

Displacement 9577l/min

Working pressure 0.7mpa

Maximum pressure 1.2mpa

Water outlet pipe diameter 20mm

Water inlet pipe diameter 30mm

Triangular belt diameter B1575mm


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email


Published date: December 8, 2018

  • Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

    Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

    convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

    Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

    Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

    The group company mainly provides solutions for engineering and mine construction.

    With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

    And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

    The group company actively responds to the national "One Belt And One Road" policy to go abroad.

    Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

    Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

    It is a pleasure to have friends coming from afar.

    We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
