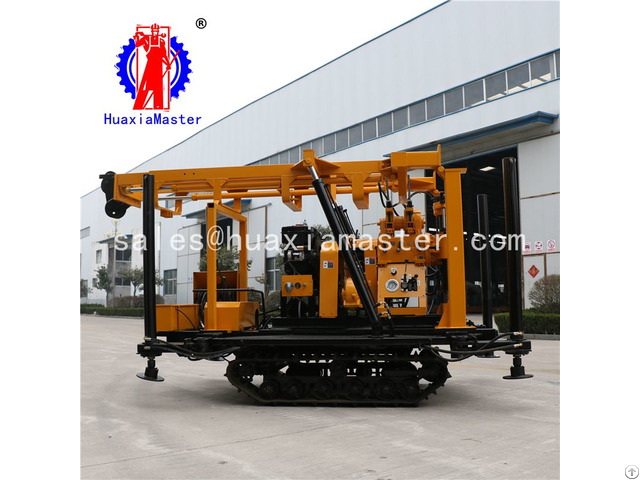

Xyd 200 Crawler Water Well Drilling Rig Price - China

1 - The features of XYD-200 water well drilling rig

Drilling rig uses automatic Telescopic drilling rig, it uses two high-strength cylinders to support.

There is a group of hydraulic valves to control supination of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.

The chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs installate and adjust is fast and convenient, can be used for work plane leveling.

It can make loading and unloading reduce the cost of to improve efficiency.

It also can be used as auxiliary support when the track drilling rig is working.

The chassis uses a rubber belt track so that the weight is light, the cost of life cycle is lower.

It can reduce noise of the vehicle walking mechanism, reduce car body’s shake, reduce the oil consumption.

It can walk on the pavement of city and not hurt the pavement.

Using 48V electric starting diesel engine reduced the operate's labour intensity greatly.

Especially in cold season, when diesel engine start hardly, it will show superiority vastly.

The machine is equipped with BW-160 independent mud pump, the pump flow and pressure are big, the maintenance is convenient, the parts of the machine are convenient to buy all over the country.

2 - The specifications of XYD-200 water well drilling rig

XYD-200 drilling rig

Drilling depth 200m

Maximum opening hole diameter 75-300mm

End hole diameter 75mm

Active drilling pipe 53/59*4200mm

Drilling pipe diameter 50/60mm

Drilling angle 90°-75°

Matched power (diesel engine) 16.2kw 2200r/min

Weight/dimension 3000kg, 3800*1950*2700

Spindle

Spindle speed 64/128/287/557r/min

Spindle stroke 450mm

Windlass

Single rope lifting force 24kn

Single rope lifting speed 0.12/0.22/0.49/0.95m/s


Drum diameter 140mm

Wire rope diameter 13mm

Windlass capacity in terms of rope length 35m

Drilling Tower

Rated load 5t

Effective height 6m

Tower leg diameter 89mm

Mud pump

Model BW160

Flow 160l/min

Maximum pressure 1.3mpa

Reciprocating frequency 165r/min

Water inlet pipe diameter 51mm*4.5m

High pressure water outlet pipe diameter 32mm*6m
