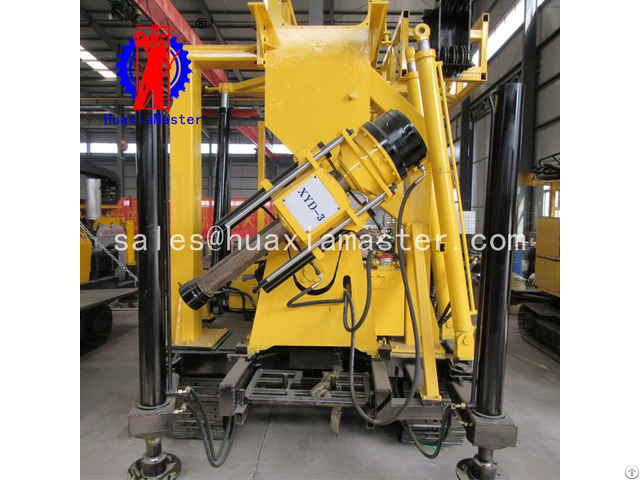

Xyd 3 Crawler Water Well Drilling Rig Price - China

1 - The applications of XYD-3 water well drilling rig

XYD-3 crawler drilling rig is mainly used for Made in China water well, Field irrigation well, Engineering water well, precipitation well and so on; geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole drilling and direct grouting.

2 - The features of XYD-3 crawler water well drilling rig

The machine is equipped with crawler chassis device, easy to move and the speed is fast.

The crawler device is made of very resistance steel mill.

Hydraulic oil pressure feed device, improves drilling efficiency.

Drill mast controlled by hydraulic cylinder, improve the efficiency.

Pressure gauge display the condition of the bottom of the drill hole.

Diesel engine adopt the electric starter, to reduce the labor intensity.

3 - The specifications of XYD-3 water well drilling machine

XYD-3 water well drilling rig

Drilling depth 600m

Maximum open hloe diameter 300mm

End hole diameter 75mm

Drilling pipe diameter 60mm

Drilling angle 90°-75°

Vertical Shaft

forward speed 30-1050r/min

Inversion speed 29-137r/min

Stroke 600mm

inner diameter 96mm

Windlass

Single line lifting speed 0.5/0.9/1.4/1.9m/s

Wire-rope diameter 12.5mm

Band-type brake width 90mm

Drum diameter 300mm

Windlass capacity in terms of rope length 30kn

Mud pump

Type Horizontal triples BW-250 Displacement 250l/min

Water inlet pipe diameter 75mm

Water outlet pipe diameter 50mm

Power

Diesel engine 38kw

Electric motor Y180L—4 22KW

Dimension 2500*900*1800mm

Weight 6500kg
