Xyx 130 Water Well Hydraulic Press Drilling Machine - China

price: 6000.00 Dollar US$

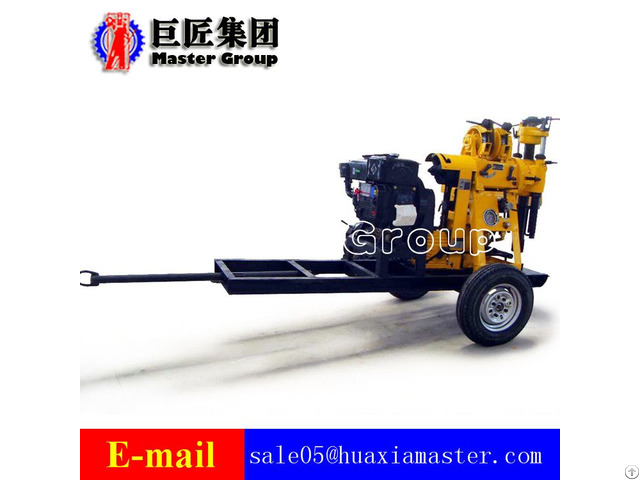

Xyx 130 Water Well Hydraulic Press Drilling Machine

Products Photos Catalog Xyx 130 Water Photos Catalog

1 - The applications of XYX-130 wheeled drilling rig

Field irrigation well, civil uses water well and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.

2 - The features of XYX-130 wheeled drilling rig

The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move

With oil pressure feeding mechanism to improve drilling efficiency.

The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

The working efficiency is high and the operation is convenient and safe and reliable.

Pressure gauges with hole bottom indicate pressure, so as to facilitate the control of the situation in the hole.

3 - The specifications of XYX-130 wheeled drilling rig

XYX-130 wheeled drilling rig

Drilling depth 130m

Maximum open hole diameter 220mm

End hole diameter 75mm

Drilling pipe diameter 50mm

Drilling angle 90°-75°

Drill rig weight 950kg

Vertical Spindle

Spindle rotating speed 142 285 570r/min

Spindle stroke 450mm

Windlass

Maximum lifting weight of single rope 1600kg

Maximum lifting speed of single rope 0.41/ 0.82/1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Drum capacity 27m

Mud pump

Model Horizontal single cylinder double action

Displacement (diesel and electric engine, respectively) 95/77 l/min

Maximum pressure 1.2mpa

Working pressure 0.7mpa

Water inlet pipe diameter 30mm

Water outlet pipe diameter 20mm

Triangular belt diameter B1575mm


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: October 23, 2018

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.
