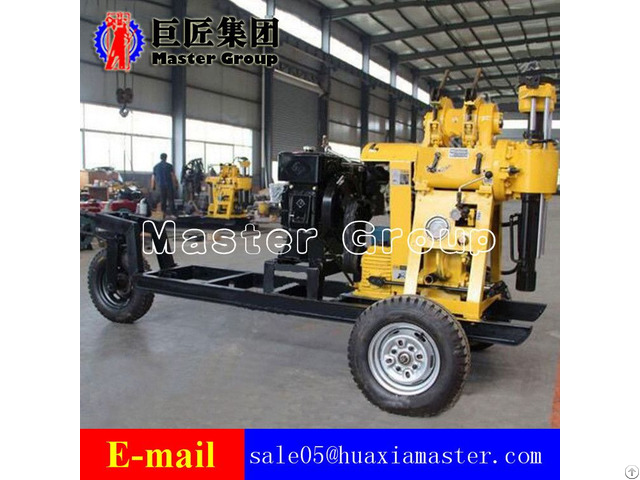

Xyx 130 Wheel Water Well Drilling Rig - China

1 - The applications of XYX-130 wheeled drilling rig

Field irrigation well, civil uses water well and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.

2 - The features of XYX-130 wheeled drilling rig

The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move

Pressure gauges with hole bottom indicate pressure, so as to facilitate the control of the situation in the hole.

With oil pressure feeding mechanism to improve drilling efficiency.

The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

The working efficiency is high and the operation is convenient and safe and reliable.

3 - The specifications of XYX-130 wheeled drilling rig

XYX-130 wheeled drilling rig

Drilling depth 130m

Maximum open hole diameter 220mm

End hole diameter 75mm

Drilling pipe diameter 50mm

Drilling angle 90°-75°

Drill rig weight 950kg

Vertical Spindle

Spindle rotating speed 142 285 570r/min

Spindle stroke 450mm

Windlass

Maximum lifting weight of single rope 1600kg

Maximum lifting speed of single rope 0.41/ 0.82/1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Drum capacity 27m

Mud pump

Model Horizontal single cylinder double action

Displacement (diesel and electric engine, respectively) 95/77 l/min

Working pressure 0.7mpa

Maximum pressure 1.2mpa

Water outlet pipe diameter 20mm

Water inlet pipe diameter 30mm

Triangular belt diameter B1575mm
