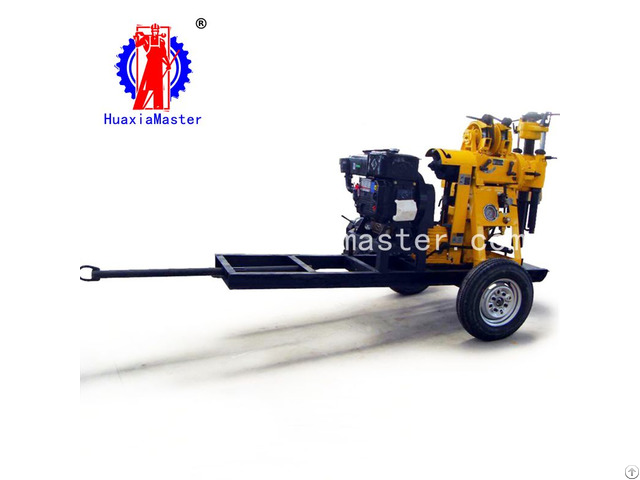

Xyx 130 Wheeled Hydraulic Core Drilling Rig Supplier - China

1 - Applications of XYX-130 wheeled hydraulic core drilling rig

Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil water well and ground temperature central air conditioners.

2 - Features of XYX-130 wheeled hydraulic core drilling rig

The drilling rig is equipped with wheeled walking mechanism, which is convenient for the whole machine to move.

Also, because of the oil pressure feeding mechanism, the rig improves drilling efficiency.

The drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

The working efficiency is high and the operation is convenient, safe and reliable.

The drilling rig is equipped with pressure gauge so the operatpr will know the bottom hole condition during drilling process.

3 - Technical parameters of XYX-130 wheeled hydraulic core drilling rig

XYX-130 wheeled hydraulic core drilling rig

Max open hole caliber 220mm

End hole caliber 75mm

Drilling depth 130m

Drilling rod diameter 50mm

Drilling angle 90°-75°

Drill weight 950kg

Spindle

Spindle speed 142 285 570r/min

Spindle stroke 450mm

Mud pump

Type Horizontal single cylinder double action

Displacement diesel engine / motor 95/77 l/min

Work pressure 0.7mpa

Maximum pressure 1.2mpa Windlass

Maximum lifting weight of single rope 1600kg

Single rope lifting speed 0.41 0.82 1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Wire rope capacity 27m
