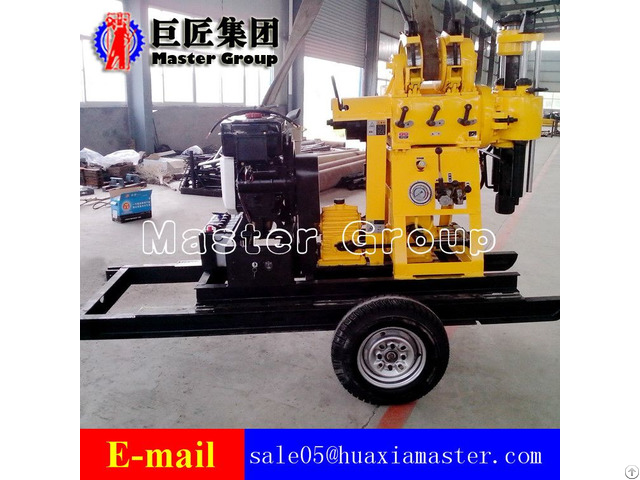

Xyx 200 Water Well Drilling Rig Trailer Mounted - China

1 - The features of XYX-200 water well drilling rig

It has oil pressure feed mechanism to improve drilling efficiency.

Wheel walking mechanism, very convenient for transport and adjusting the drilling rig level.

Pressure gauge display the condition of the bottom of the drill hole.

The machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

The working is high efficiency, convenient operation, safe and reliable.

2 - The specifications of XYX-200 water well drilling rig

XYX-200 water well drilling rig

Drilling hole depth 200m

Maximum opening hole diameter 300mm

End hole diameter 75mm

Drilling pipe diameter 60mm

Drilling angel 90°-75°

Rig weight (without power) 1300kg

Triangular belt B950×4 B1700×3

Active moving distance 300mm

Power diesel engine/ motor 20hp/16.2kw

Vertical spindle

Rotation speed 64 128 287 557 r/min

Stroke 450mm

Windlass

Maximum lifting power of a single rope 2400kg

Lifting speed of a single rope 0.41/ 0.82/ 1.64m/s

Wire rope diameter 13mm

Wire rope capacity 35m

Band-type break diameter 260mm

Band-type break belt width 70mm

Mud pump

Model horizontal single cylinder double action

Maximum displacement diesel engine 170L/min

Matching motor 150L/min

Maximum pressure 3mpa

Work pressure 1.5mpa

Water inlet pipe diameter 40mm

Water outlet pipe diameter 30mm

Triangular belt B1728mm

Model CBT—F—314

Triangular belt B1100× 1
