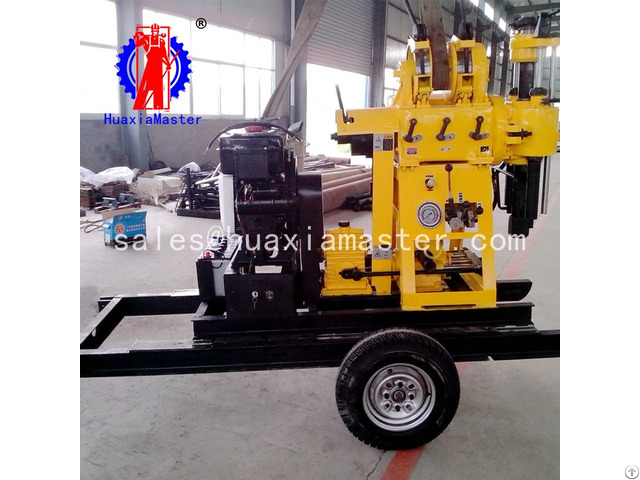

Xyx 200 Wheeled Hydraulic Core Drilling Machine Manufacturer For China - China

1 - Characteristics of XYX-200 wheeled hydraulic core drilling rig

·hydraulic cylinder, high efficiency

·the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

·the working efficiency is high and the operation is convenient, safe and reliable.

·pressure gauge display the condition of the bottom of the drill hole.

·wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.

2 - Technical parameters of XYX-200 wheeled hydraulic core drilling rig

XYX-200 wheeled hydraulic core drilling rig

Drill hole depth 200m

Maximum opening diameter 300mm

Final hole diameter 75mm

Drill pipe diameter 60mm

Borehole inclination 90°-75°

Rig weight (without power) 1300kg

Trigonometric belt B950*4 B1700*3

Active moving distance 300mm

Power Diesel engine/motor 22hp/16.2kw

A vertical scroll of painting

Shaft rotation speed 64/128/ 287/ 557 r/min

Vertical axis stroke 450mm

Windlass

Maximum lifting weight of single rope 2400kg

Single rope lifting speed 0.41/ 0.82/1.64m/s

Wire rope diameter 13mm

Wire rope capacity 35m

Hug floodgate caliber 260mm

Hug floodgate belt width 70mm

Mud pump

Type Horizontal single cylinder double action

Maximum displacement Diesel engine 170L/min

Matching motor 150L/min

Maximum pressure 3Mpa

Work pressure 1.5Mpa

Inlet pipe caliber 40mm

Outlet pipe caliber 30mm

Triangle conveyer belt B1728mm

Type CBT-F-314

Triangle conveyer belt B1100*1 Shandong Master Machinery Group Co., Ltd.
