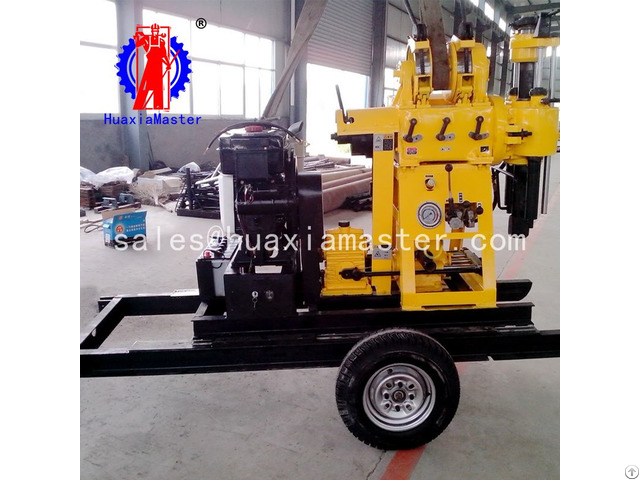

Xyx 200 Wheeled Well Rig In Stock Hydraulic Drill Machine - China
price: 100.00 Dollar US$
1 - Characteristics of XYX-200 wheeled hydraulic core drilling rig
·hydraulic cylinder, high efficiency
·wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.
·pressure gauge display the condition of the bottom of the drill hole.
·the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.
·the working efficiency is high and the operation is convenient, safe and reliable.
2 - Technical parameters of XYX-200 wheeled hydraulic core drilling rig
XYX-200 wheeled hydraulic core drilling rig
Drill hole depth 200m
Maximum opening diameter 300mm
Final hole diameter 75mm
Drill pipe diameter 60mm
Borehole inclination 90°-75°
Rig weight (without power) 1300kg
Trigonometric belt B950*4 B1700*3
Active moving distance 300mm
Power Diesel engine/motor 22hp/16.2KW
Company Contact:
- Phone: 8619806265526
- Address: Wu taizha road, guanhe street,, Jining , Shandong , China
- Email:
- Website: http://www.huaxiamaster.com
Published date: July 11, 2019
- Business Description: Group for a long time in line with the giants of masters of "the spirit of craftsman, creates quality" concept of enterprise development, challenge pragmatic development, now has developed into a collection of research and development design, manufacture and market sales in the integration of many company joint operation of collectivization, giant group members have jining machinery research institute, shandong machinery manufacturing co., LTD., the giants of the giants and huge machinery co., LTD., shandong province, China, etc.
