Xyx 3 Man Portable Diamond Drill Rig With Water Well Drilling Machine For Sale - China

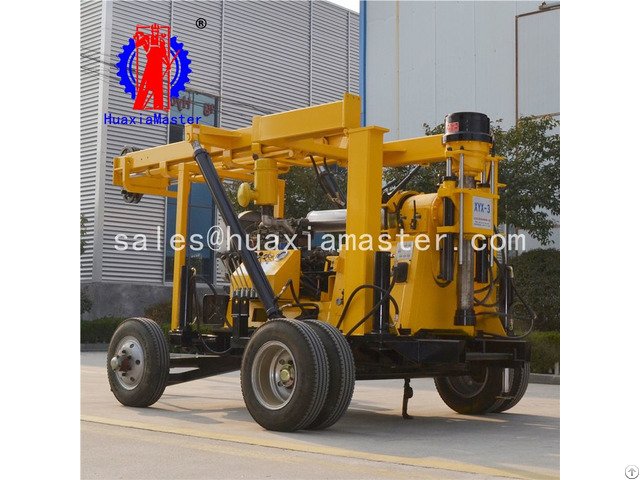

XYX-3 man portable diamond drill rig with water well drilling machine for sale

1 - Characteristics of XYX-3 wheeled hydraulic core drilling rig

·The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.

·Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable.

·With oil pressure feeding mechanism to improve drilling efficiency

·The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.

·The lifting and falling tower is hydraulic operation, which is convenient and reliable.

·The diesel engine uses electric start to reduce the labor intensity of the worker.

2 - Parameters of XYX-3 wheeled hydraulic core drilling rig

Drilling depth 100/ 250 / 300/ 600 m

Maximum opening diameter 300 / 200 /150 / 75mm

Max open hole caliber 300mm

Final hole diameter 75mm

Drill pipe 60mm

Borehole inclination 90°-65°

A vertical scroll of painting

Vertical rotation speed of vertical axis 30-1050r/min

Vertical reversal speed 29-137r/min

Vertical axis stroke 560mm

Diameter of shaft inner hole 96mm

Vertical axis lifting capacity 60kn

Main hoist (hydraulic drive)

Single rope lifting speed 0-45m/min

Wire rope diameter 14mm

Band width 90mm

Drum diameter 300mm

Reel capacity 30m

Maximum lifting capacity of single rope 40kn

Auxiliary hoist (hydraulic drive)

Drum diameter 140mm

Diameter of steel wire 6mm

Reel capacity 450m

Mud pump

Mud pump BW-250 Horizontal three cylinder

Flow 250 l/min

Working pressure 7mpa

Inlet diameter 75mm

Outlet diameter 50mm

Gear oil pump

Double oil pump CBF-F63/25

Front-end flow pressure 63 l/min 20mpa

Backend flow pressure 25 l/min 20mpa

Rig power

Diesel engine FAW Xichai 4 cylinder

Electric machinery Y180L-4 22KW

Wheeled chassis

Bearing capacity of wheel chassis 3.5t

Wheel chassis length 2.6m

Wheel chassis width 2m

Wheel chassis height 0.6m
