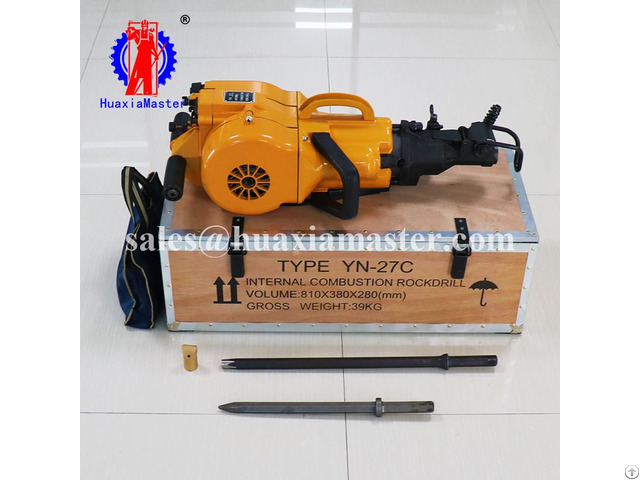

Yn27c Internal Combustion Rock Drilling Rig Manufacturer For China - China

1 - The brief introductions of the YN27C internal combustion rock drilling rig

YN27C type internal combustion rock drill is widely used in mining, road construction, rock quarrying, construction, railway tamping, geological survey, cement pavement, asphalt pavement and other splitting, crushing, compacting, chipping and other functions.

2 - The features of YN27C internal combustion rock drilling rig

·Only move the handle as required to complete drilling or crushing operations.

·The machine is easy to operate, more time-saving and labor-saving, with the characteristics of fast chisel speed and high efficiency.

·The machine has reached the first-class level of the same kind of products, and can completely exchange parts of the same kind of international products.

·The borehole on the rock, can be vertical, horizontal down up less than 45 ° vertically down the deepest drilling up to six meters.

·The weight of the main engine is only 27 kg, only one person can work, easy to carry, suitable for high mountains, no power, no wind pressure equipment areas and greater mobility of temporary projects is particularly suitable.

·Whether in the mountains, the ground, no matter in the heat of 40 ° or minus 40 ° of cold region all can work, this machine has extensive adaptability.

·This machine adopts export packaging, and all indexes meet export standards.

This product is exempt from inspection and no commodity inspection is required for export.

Since only gasoline is required to operate, no other auxiliary equipment is required.

·The machine is suitable for mining iron ore, copper ore, nickel ore, lead-zinc ore, gold ore, gemstone ore, granite, bluestone, jade and other mines.

3 - The specifications of YN27C internal combustion rock drilling rig

Item Parameters

Engine type single-cylinder air-cooled two-stroke gasoline engine

Carburetor type no float type

Ignition mode thyristor contactless system

Engine displacement 185cm³

Engine load speed (measured when drilling five holes) ≥2450r/min

Idling speed of drill rod ≥ 200r/min

Bit shank size bit rod tail hexagonal 22*108mm

The deepest hole cutting depth ≥6m

Tank capacity

Tank capacity

≥ 1.14L

Drilling speed

≥ 250mm/min

Gasoline and lubricating oil mixture ratio (by volume) 12: 1

Spark plug electrode clearance 0.5 ~ 0.7mm

Oil consumption rate (measured when drilling five holes ≤o 0.12L

Impact energy ≥ 25J

Weight of main engine 27kg
