    • Yqz 30 Engineering Geology Drilling Rig - China

    price: 100.00 Dollar US$

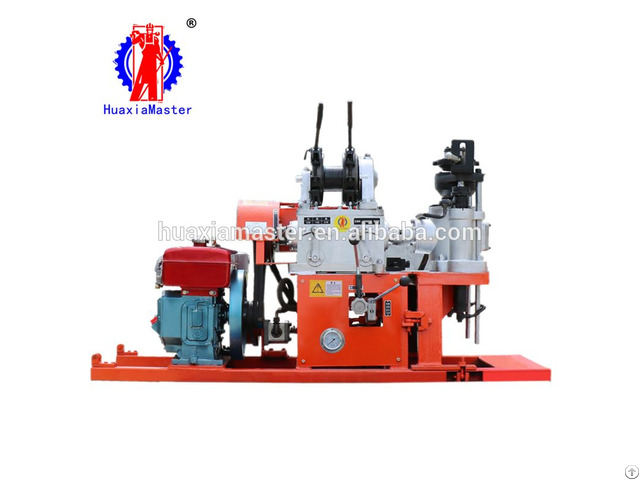

    Yqz 30 Engineering Geology Drilling Rig

    Products Photos Catalog Yqz Engineering Photos Catalog

    1 - Brief introductions of YQZ-30 hydraulic core drilling rig

    YQZ-30 hydraulic core drilling rig is a small portable diesel oil drilling machine.

    It is mainly used for prospecting and exploration, geophysical exploration, drilling engineering such as road construction and blasting hole, shallow oil, natural gas and groundwater drilling.

    It also can be used for engineering drilling of dam grouting and tunnel ventilation and drainage.

    The drilling depth of YQZ-30 hydraulic core drilling rig is 30 meters.

    The open hole diameter is 89mm, and the final hole diameter is 75mm.

    2 - Features of YQZ-30 hydraulic core drilling rig

    ·Oil pressure automatic feeding mechanism, high drilling efficiency.

    ·Using the upper ball clamp mechanism, non-stop re-chuck

    ·Handles are centralized, easy to operate, safe and reliable.

    ·Compact structure, small floor space.

    ·The shell of drill rig and gearbox are made of aluminum.

    The shell reduce the weight of the fuselage.

    · Easy to decomposition and move, suitable for working in hilly terrain, mountainous areas and other complex terrain.

    3 - Technical parameters of YQZ-30 hydraulic core drilling rig

    Main engine

    Drilling depth 30m Drill pipe diameter 42mm

    Open hole diameter 91-110mm End hole diameter 75 mm

    Drilling rig weight 198kg(No power) Drilling rig dimension 1400*600*1055mm

    Windlass

    Maximum hoist capacity 4kn Coiling block diameter 90mm

    Wire rope diameter 8mm Maximum length 18m

    The band type brake diameter 200mm The band type brake width 35mm

    Vertical shaft

    Rotating speed 136/338/578r/min Stroke 400mm

    Maximum pressure 8kn Lifting power 10kn

    Oil pump

    Model YBC20/125 Rated pressure 12.5Mpa

    Rate of flow 20ml/r Rated rotate speed 1500r/min

    Power

    Diesel engine R180 Cooling type water-cooling

    Rated power 5.67KW Rated rotate speed 2600r/min


    Company Contact:


    • Phone: 8619806265526

    • Address: Wu taizha road, guanhe street,, Jining , Shandong , China

    • Email: Email


    Published date: July 11, 2019

    • Business Description: Group for a long time in line with the giants of masters of "the spirit of craftsman, creates quality" concept of enterprise development, challenge pragmatic development, now has developed into a collection of research and development design, manufacture and market sales in the integration of many company joint operation of collectivization, giant group members have jining machinery research institute, shandong machinery manufacturing co., LTD., the giants of the giants and huge machinery co., LTD., shandong province, China, etc.
