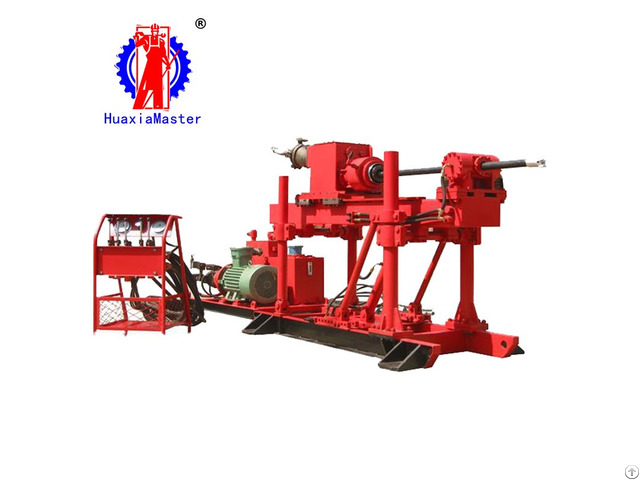

Zdy 1250 Full Hydraulic Tunnel Drilling Rig For Coal Mine Price - China

1 - The brief introductions of ZDY-1250

ZDY-1250 hydraulic tunnel drilling machine is used for coal mine: Z stands for drilling rig; D stands for power head; Y stands for hydraulic driven, and 1250 is the maximum output torque of 1250n.

m.

2 - The applications of ZDY-1250 ZDY1250 tunnel drilling rig is mainly used for drilling holes of gas pumping (row), grouting hole, water injection hole, anti process and pressure relief hole, geological exploration hole and other engineering drilling holes.

Drilling rig can drill holes in the range of azimuth and dip angle specified in the basic parameter table.

3 - The specifications of ZDY1250 Project Unit ZDY-1250

Maximum drilling depth m 200

End hole diameter mm 65/75

Open hole diameter mm 87/115

Drilling pipe diameter mm 50

Drilling angle ° -90-+90

Rated output rotating speed r/min 80/170

Rated output torque n.

m 1250/600

Rated voltage v 380/660

Rated power kw 22

Rated current a 42.5/24.5

Feeding force kn 60

Pullout force kn 45

Anchorage force kn 4*45

Rated advance speed m/min 0-1.5

Feed stroke mm 850

Hardness range (protodyakonov scale of hardness) f≤10

Noise db(a) ≤92

Total weight (without drill rod) kg 1820

Main engine dimension (long*width*high) mm 2240*1000*1478
