Zdy 1600s Double Pump Full Hydraulic Tunnel Drilling Rig For Coal Mine Price - China

1 - The brief introductions of ZDY-1600S Double Pump full hydraulic drilling rig

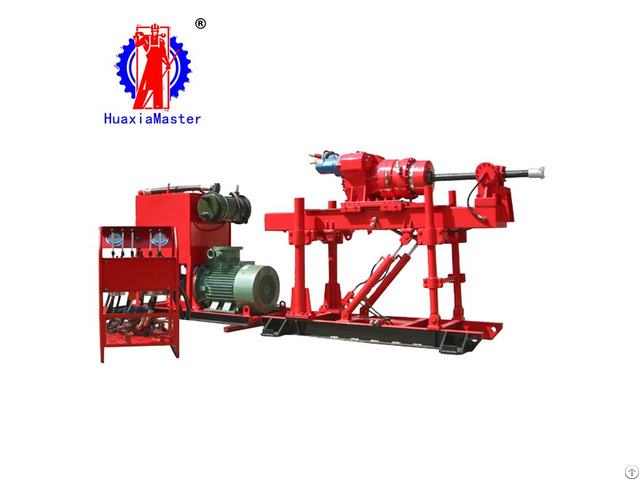

ZDY1600S Double Pump full hydraulic tunnel drilling machine is a full hydraulic power head mechanism, which is divided into three main parts, main engine, pump station and control table.

It is easy to disassemble and convenient to transport.

The rig structure is arranged with great flexibility.

Also, we provide mechanical unload drilling tools, chuck, clamp and oil cylinder.

Revolving device and gripper can operate in linkage, Therefore, the drilling rig is highly automated, made the rig efficient and easy to operate.

The ZDY1600S Double Pump full hydraulic tunnel drill adopts double pump system.

The rotation parameters and the input parameters are independently mediated, which improves the adaptability of the drilling machine to various drilling technology; it is convenient to save force by adjusting the inclination angle of the fuselage with the support oil cylinder; the rotary device adopts the through hole structure.

And the length of the drill pipe is not limited to the process.

The worker can operate from afar, so it’s good in flexibility and safety.

2 - The specifications of ZDY-1600S full hydraulic drilling rig

Project Unit Parameter

Maximum drilling depth m 250/80

Open hole diameter mm 113/128

End hole diameter mm 150/200

Drilling pipe diameter mm 63.5/73

Drilling angle ° 0-±90

Output torque n.

m 900-1600

Rated advance speed m/s 0-0.2

The applicability of the strength coefficient of coal and rock f≦10

Motor power kw 30

Main engine dimension size mm 2300*950*1500

Total weight (excluding the drill rod) kg 1900

Main engine weight kg
