Zdy 1900s Double Pump Full Hydraulic Tunnel Drilling Rig For Coal Mine Price - China

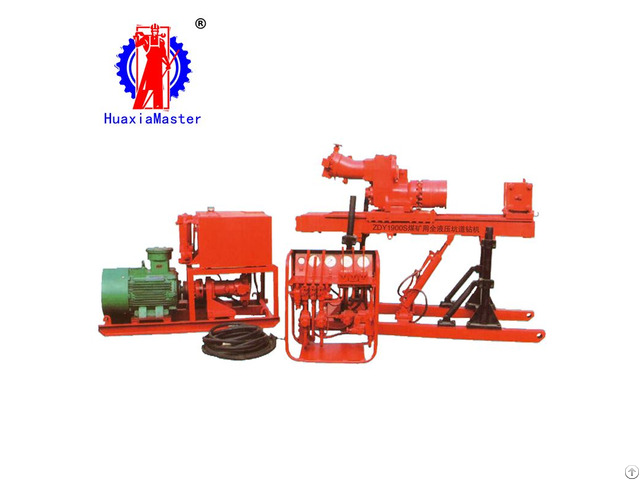

1 - The brief introductions of ZDY-1900S full hydraulic drilling rig

ZDY1900S full hydraulic tunnel drilling rig is mainly used for gas drainage, trenchless street crossing, anchor support holes and other construction operations.

ZDY1900S full hydraulic drilling rig uses all hydraulic power head type structure, which is composed of main engine, pumping station, operating station.

It is easy to dissemble and convenient to transport.

Also the rig structure is flexible, which makes the drilling process more efficient and effective.

The gyrator uses through hole structure.

The length of drill pipe is not restricted by the structure size of the drilling rig; When the machine screw and unscrew drill tools, chuck, clamp and oil cylinder, gyrator and gripper can operate in linkage with high automation and high efficiency.

the operation is simple and achieves labour-saving.

2 - The specifications of ZDY-1900S full hydraulic drilling rig

Project Unit Parameter

Maximum drilling depth m 350/100

Open hole diameter mm 113/128

End hole diameter mm 150/200

Drilling pipe diameter mm 63.5/73

Drilling angle ° 0-90

Rated advance speed m/s 0-0.22

Output torque n.

m 500-1600

Hardness range (protodyakonov scale of hardness) f≦10

Motor power kw 37

Main engine dimension mm 2300*1100*1560

Total weight (excluding the drill pipe) kg 2040

Main engine weight kg
