Zdy 4000s Double Pump Full Hydraulic Tunnel Drilling Rig For Mineral Equipment Coal Mine - China

1 - Brief introductions of ZDY-4000S full hydraulic tunnel drilling rig

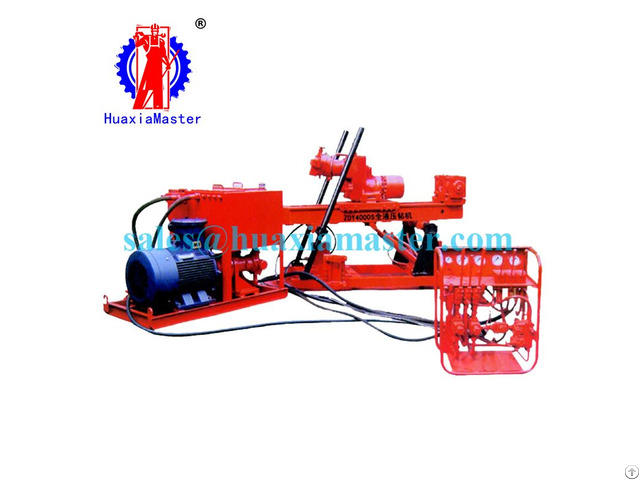

ZDY4000S full hydraulic tunnel drilling rig is a frame type structure, which is composed of three parts: the main engine, the hydraulic pump station and the operating table.

The structure is simple, safe and reliable.

It can be transported in parts

ZDY4000S full hydraulic tunnel drilling rig can be widely used in coal mine underground gas drainage hole, measure hole, probe and discharge hole, fire grouting hole, coal seam injection hole and other drilling construction.

2 - Features of ZDY-4000S full hydraulic tunnel drilling rig

The rotary system, clamping system and propulsion system are all hydraulically control, and all the loading and unloading drill pipes are automatic, which reduces the labor intensity of the operator.

The clamping chuck and gearbox system are integrated design, clamping cylinder is placed outside, clamping force is large.

it is convenient for dismounting and maintaining.

The propulsion cylinder adopts double head oil cylinder design, which has the characteristics of pushing long distance, and the propulsion distance can reach 1100mm.

Hydraulic system adopts double pump oil supply circuit system, and propulsion and rotation will not affect each other.

Key hydraulic components: oil pump, motor and operation valve adopt Sino German joint venture products.

The drilling angle can be adjusted in the range of about 45 degrees.

3 - Working principles of ZDY-4000S full hydraulic tunnel drilling rig

Electric motor driven oil pump is provided; two-ply hydraulic oil goes through the operating table.

One pressure oil goes to the hydraulic motor connected to the reducer.

Output power after deceleration drives drilling tool to rotate.

Another pressure oil is delivered to the oil cylinder to push the piston move around, so that the power head can be driven to feed, return or start drilling.

The feeding speed of drilling rig can be adjusted by rotating counterclockwise and throttling hand wheel.

Operating handle can control hydraulic clamping device and hydraulic chuck action, loose and unload clamp drill pipe and rack go up and down or install angle adjustment.

4 - Specifications of ZDY-4000S full hydraulic tunnel drilling rig

Item Unit Parameter

Maximum drilling depth m 350/150

Borehole diameter mm Ф150/Ф200

Drilling pipe diameter mm Ф63.5/Ф73

Drilling angle ° -45/+45

Output torque n.

m 1500-4000

Ability to feed kn 150

Ability to pullout kn 150

Rotating speed r/min 50-280

Rated advance speed m/s 0-0.26

Hardness range (protodyakonov scale of hardness) f≦10

Main engine dimension mm 2380*1300*1520

The whole weight (excluding the drill rod) kg 2540

Motor power kw 55

Main engine weight kg 1500
