Zdy 650 Full Hydraulic Tunnel Drilling Rig For Coal Mine Price - China

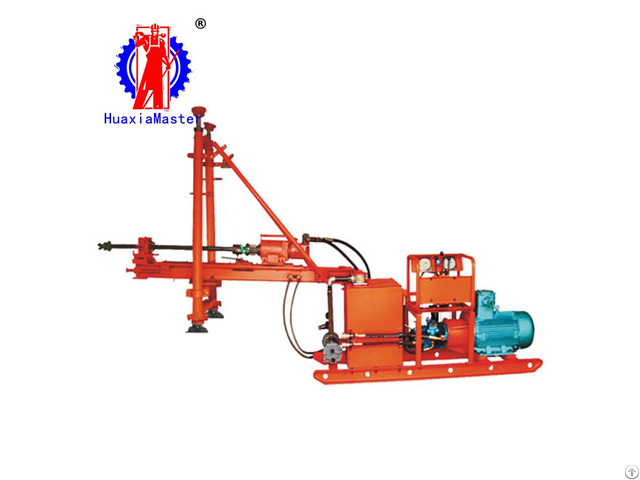

1 - The Brief Introductions of ZDY-650 The ZDY-650 type full hydraulic tunnel drilling rig is mainly used for drilling holes, grouting holes.

The working area is more than 6.5 square meters, and the height is more than 2.3m.

The width is more than 2.8m.

It has two kinds of drills, which are split column rack and pedestal rack.

It can choose different drilling rig according to the height and usage of underground roadway.

2 - The Specifications of ZDY-650 Project Unit ZDY-650

Maximum drilling depth m 150

Open hole diameter mm 75/115

End hole diameter mm 65

Drilling pipe diameter mm 42

Drilling angle ° 0-±90°

Feeding force kn 48

Pullout force kn 35

Output rotating speed r/min 95

Output torque n.

m 650

Rated advance speed m/min 0-1.5

Feeding stroke mm 850

Hardness range (protodyakonov scale of hardness) / f≤8

Noise db(a) ≤92

Working efficiency % ≥40

Pumping station pump discharge pressure mpa rotation 14/ feed 11 working medium / 46# Antiwear hydraulic oil tank capacity l 96.6 dimension (long *wide*high) mm 1480*700*650

Control station feeding pressure mpa 11 reverse rotation pressure mpa 13 forward rotation pressure mpa 12 dimension (long x*wide *high) mm 500*400*450

Motor model / YBK2-160L-4 rated power kw 15 rated voltage v 380/660 660/1140 rated current a 30/17.5

17.5/10.1 rated rotating speed r/min 1460

Two layer steel wire braided hydraulic support rubber tube assembly RB2-6/10/13/16/19/22/25/3 2

Main engine dimension(long * weight * high) mm 2200*600*500

Total weight (excluding drill rod) kg 1200
