1 - Brief introductions of ZDY-750 full hydraulic tunnel drilling rig

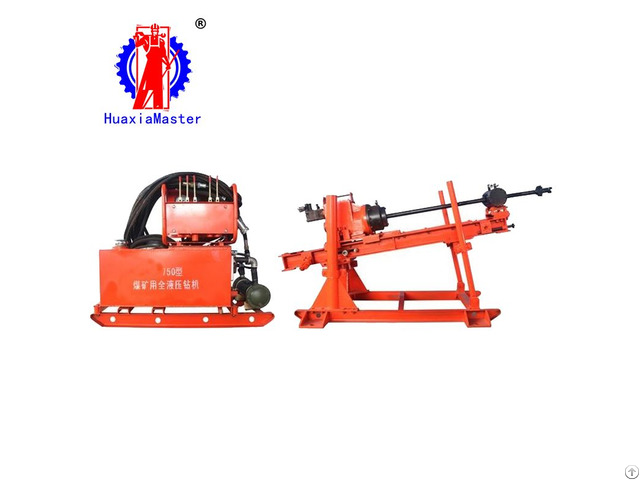

ZDY-750 full hydraulic tunnel drilling rig mainly consists of pump station, power head, rack, column frame, operation platform and drilling tool.

Rig pump station and power head are connected by high pressure pipes with different diameters.

All joints are connected by quick connection, which is convenient for installation, withdrawal and transportation.

The pump station is driven by an explosion-proof motor to drive the oil pump to convert the electric energy into the rotating oil road and the hydraulic energy (pressure oil) to advance the oil road.

Then the pressure oil is transported to the hydraulic actuator through the valve group on the control table, so as to realize the various functions of the drill.

2 - Applications of ZDY-750 full hydraulic tunnel drilling rig

ZDY750 full hydraulic tunnel drilling rig for coal mine is mainly used for drilling holes, grouting holes, water injection holes, anti outburst and pressure relief holes, geological exploration holes and other engineering holes.

Suitable for rock strength coefficient of F is less than or equal to 10, the various coal seam strata.

Drilling rig can drill holes in the range of azimuth and dip angle specified in the basic parameter table.

3 - Specifications of ZDY750 full hydraulic tunnel drilling rig

Item Unit ZDY-750

Drilling depth m 150

Open hole diameter mm Ф65/Ф85/Ф115

End hole diameter mm Ф65/Ф75

Drilling pipe diameter mm Ф42/Ф50

Drilling angle º 0-90

Drilling azimuth º 0-360

Output torque n.

m 750/300

Output rotating speed r/min 120/330

Working pressure of hydraulic system mpa 14

Thrust kn 50

Pulling force kn 30

Anchorage force kn 80*2

Advance speed m/min 0-1.5

Feeding stroke mm 850

Motor model YBK2-180M-4

Motor power kw 18.5

Motor voltage v 380/660

Tank capacity l 90

Working medium Thick 40＃Hydraulic oil

Main engine dimension mm 2107*440*615

Pump station dimension mm 1400*700*986

Weight kg 1400
