Zlj 1200 Foundations Grouting Reinforcement Drilling Rig Construction Drill - China

price: 100.00 Dollar US$

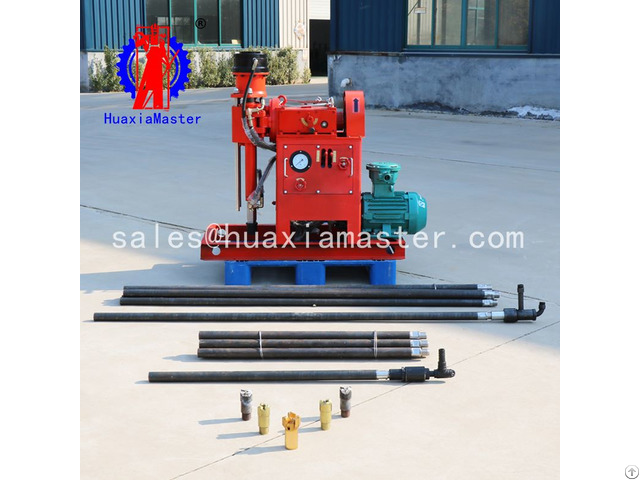

Zlj 1200 Foundations Grouting Reinforcement Drilling Rig Construction Drill

Products Photos Catalog Zlj 1200 Foundations Photos Catalog

1 - Brief introductions of ZLJ1200 grouting reinforcement drilling rig

ZLJ1200 grouting reinforcement drilling rig is mainly used for drilling holes with different angles in underground mine, tunnel, subway and slope support.

This drilling rig adopts mechanical drive, hydraulic feed with small size, light weight, The drilling rig is reliable and convenient to operate.

2 - Specifications of ZLJ1200 grouting reinforcement drilling rig

Borehole diameter 76-Φ108mm

Vertical shaft rated output torque 1200n.

m

Drilling depth 200-250m

Drilling pipe diameter 42mm/50mm

Non-coring bit 76Φ108mm

Core bit 76Φ108mm

Vertical rated rotating speed 385/219/123r/min

Vertical route 400mm

Rated pull out force 50kn(10mpa/hour)

Rated impetus 30kn(10mpa/hour)

Main shaft angle 0-360

Spring chuck maximum clamping force 50kn

Oil pump model YBC-20/80

Oil pump rated pressure 20mpa

Oil pump rated flow 20l/min Electric motor model YBK2-160M-4 power(kw) 11 speed(r/min) 1460 rated pressure(v) 380/660 rated flow(a) 26.6/13.1


Company Contact:


  • Phone: 8619806265526

  • Address: Wu taizha road, guanhe street,, Jining , Shandong , China

  • Email: Email


Published date: September 24, 2019

  • Business Description: Group for a long time in line with the giants of masters of "the spirit of craftsman, creates quality" concept of enterprise development, challenge pragmatic development, now has developed into a collection of research and development design, manufacture and market sales in the integration of many company joint operation of collectivization, giant group members have jining machinery research institute, shandong machinery manufacturing co., LTD., the giants of the giants and huge machinery co., LTD., shandong province, China, etc.
