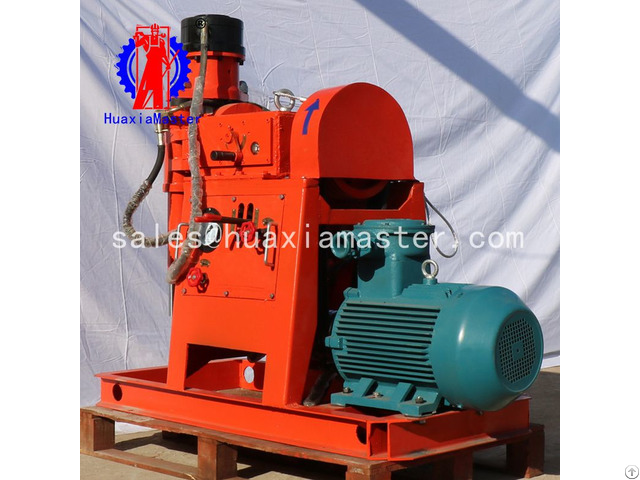

Zlj650 Grouting Reinforcement Drilling Rig - China

1 - Brief introductions of ZLJ650 grouting reinforcement drilling rig

ZLJ-650 grouting reinforcement drilling rig is mainly used for drilling holes with different angles in underground mine, tunnel, subway and slope support.

This drilling rig adopts mechanical drive, hydraulic feed with small size, light weight, The drilling rig is reliable and convenient to operate.

2 - Specifications of ZLJ650 grouting reinforcement drilling rig

Drilling hole diameter 50-113mm

Hole depth 200m

Drilling pipe diameter 42mm

Open hole diameter 50-113mm

End hole diameter 56-113mm

Vertical rated speed 340 192 112 r/min

Vertical shaft torque rating 130/ 230/ 400 n.

m

Main shaft angle 0-360

Spindle stroke 400mm

System pressure rated 8mpa

Feeding force 9kn

Elevating power 12kn

Winch lifting capacity 7.35kn

Drum Capacity 26.8m

Wire rope diameter 8.85mm

Oil pump type YBC-12/80

Motor power 7.5kw

Dimension 1200*700*1280mm

Total weight 560kg
