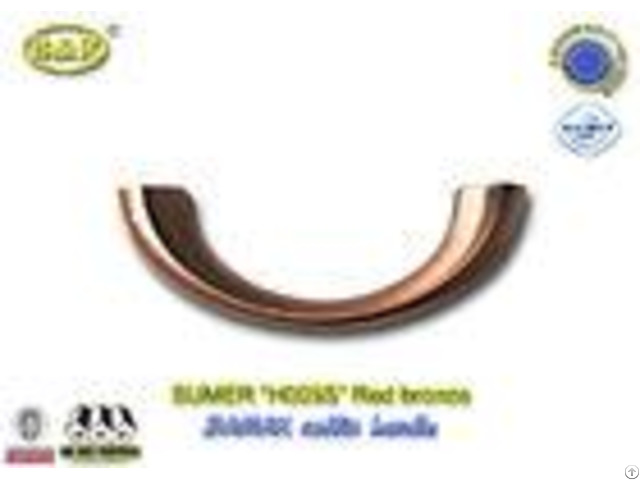

Ref No H005s Dimension 19 7cm Zamak Metal Coffin Handles Color Red Bronze Moon Shape - China

Ref No H005S dimension 19*7cm Zamak Metal Coffin Handles color antique bronze moon shape Main information: Product name: ZAMAK COFFIN HANDLE Model: H005S Brand: B&R Application: European style coffin Origin: China Manufacturer: Sumer International (Beijing) Trading Co., Ltd Product detail: Size: 19*7cm Material: Zamak (Zinc alloy) Color: Gold, Silver or Bronze (Optional) Attached on coffin by screw Central distance: 16.5cm MOQ: 1000 pcs Packing: Carton Main feature: Professionally engaged in funeral field over 10 years; Customized products acceptable; Good quality and competitive price; More Information: Zamak Major Alloy Characteristics ZAMAK 2: This is the strongest and hardest ZAMAK alloy.

Generally die cast, it is occasionally employed for gravity casting.

ZAMAK 2 is not the widely used.

ZAMAK 3: This is the most used general purpose zinc die casting alloy, providing an excellent combination of strength, ductility and impact strength.

It also provides excellent plating and finishing characteristics.

This alloy is the designer's first choice for die casting applications.

ZAMAK 5: ZAMAK 5 should be considered when moderately greater hardness, strength and creep resistance over ZAMAK 3 is required.

ZAMAK 7: this is a high purity for of ZAMAK 3 with similar mechanical properties.

However, ZAMAK 7 has higher ductility (for forming bending operations) and the highest casting fluidity of the ZAMAK family.

ZA-8: This should be the first choice when considering die casting the ZA family, due to its cost effective hot chamber castability.

ZA-8 provides improved performance characteristics over the ZAMAK alloys.

Plating and finishing characteristics are similar.

ZA-8 can also be sand or permanent mold cast.

ZA-12: This is the preferred alloy for permanent mold applications, although it can also be cal-chamber die cast with excellent results.

It combines low temperature melting efficiency and thin wall capabilities with premium mechanical properties.

ZA-12 should be used when switching from cast iron or permanent molded aluminum.

ZA-21 can usually be poured directly into molds designed for aluminum and brass.

ZA-27: Components requiring optimum strength, hardness and light weight should be specified using ZA-27 - With over double the yield strength of die cast A380 aluminum and 25% lighter than ZAMAK 3, this is definitely the high performance member of the group.

ZA-27 also offers excellent bearing properties, comparable to those of aluminum-bronze.

EZAC: Eastern Alloy's newest commercially available alloy.

EZAC is the strongest, hardest and most creep resistant die casting alloy available, and can be cast in the "hot-chamber" die casting process.

- - - - Zamak 2 properties | Property | Metric value | Imperial value | Mechanical properties | Ultimate tensile strength | 397 MPa (331 MPa aged) | 58, 000 psi | Yield strength (0.2% offset) | 361 MPa | 52, 000 psi | Impact strength | 38 J (7 J aged) | 28 ft-lbf (5 ft-lbf aged) | Elongation at Fmax | 3% (2% aged) | Elongation at fracture | 6% | Shear strength | 317 MPa | 46, 000 psi | Compressive yield strength | 641 MPa | 93, 000 psi | Fatigue strength (reverse bending 5x108 cycles) | 59 MPa | 8, 600 psi | Hardness | 130 Brinell (98 Brinell aged) | Modulus of elasticity | 96 GPa | 14, 000, 000 psi | Physical properties | Solidification range (melting range) | 379390 C | 714734 F | Density | 6.8 kg/dm3 | 0.25 lb/in3 | Coefficient of thermal expansion | 27.8 m/m-C | 15.4 in/in-F | Thermal conductivity | 105 W/m-K | 729 BTU-in/hr-ft2-F | Electrical resistivity | 6.85 -cm at 20 C | 2.70 -in at 68 F | Latent heat (heat of fusion) | 110 J/g | 4.7x105 BTU/lb | Specific heat capacity | 419 J/kg-C | 0.100 BTU/lb-F | Coefficient of friction | 0.08 | - - - - More Picture: H005S zamak coffin handle color of antique bronze H005S Italy zamak coffin handle Back look Zamak coffin handle and accessories
