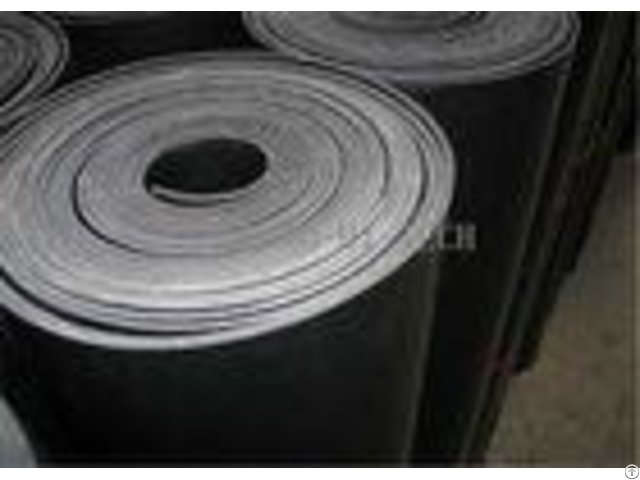

High Tear Resistant Silicone Rubber Sheet Roll For Solar Laminator Max Width 4000mm - China

170-250 Silicone rubber sheet for solar laminator Max width 4000mm Features of Silicone Rubber Sheet: We use qualified raw material of a world-famous brand for the high tear-resistant silicon rubber sheet and carries out technical cooperation with professional companies domestically and abroad.

We adopt advanced techniques and special equipment, large drum-type vulcanization unit, in the development of the product, which has a high level of stability, a good evenness and reliability.

Specially used for solar energy laminator, etc.

According to specific working conditions and lose-efficacy forms of solar laminated sheet, we develop the second generation silicone rubber sheet.

Based on the former silicone rubber sheet, this one brings in the green environmental reinforcing material which is acid resistant, chemical resistant, high temperature resistant, so the tensile strength, tearing strength, and dimensional stability of the silicone rubber sheet are greatly improved, then the lifetime is longer.

The advantage of the silicone rubber sheet is that even if it is used to the extreme, the solar module will not be damaged.

The third generation silicone rubber sheet has great improvement on the chemical resistant and ageing resistant property, especially on the high resistance to the EVA volatile matter, then the lifetime can be longer.

The fourth products working surface uses fluorine silicone rubber, it has excellent acid-resistance, the corrosion caused by EVA volatile is almost zero, it has better temperature resistance, can meet the needs of high temperature curing process.

TDS: - - - - Model | First generation XX1100 | Second generation | Third generation | Fourth generation | Fifth generation | XX2100 | XX3100 | XX4100 | XX5100 | Hardness(Shore A) | 682 | 702 | 602 | Working surface: 762 | Working surface: 762 | Buffering surface: 622 | Buffering surface: 622 | Tensile strength Mpa | 9.5 | 12.5 | 15 | 10.2 | 12.5 | Tearing strength N/mm | 42 | 48 | 40 | 45 | 48 | Long run temperature | 230 | 250 | 170 | 250 | 250 | Resistant to EVA (compare) | Weak | Middle | Strong | Strong | Strong | Normal using life (times) | 1500 | 2500 | 3500 | 5000 | 5000 | Appearance and color | Transparent, One side smooth | Black color/grey color, two sides smooth | Black color, One side smooth | Black color, Grey color, One side smooth, one side cloth grain | Black color, Grey color, One side smooth, one side cloth grain | One side cloth grain /Two sides smooth | One side cloth grain/two sides smooth | Remarks | 1 - The maximum width can be 4000mm without seam, the worlds first.

| 2 - Special specifications can be ordered according to customers requirements.

| 3 - We can also provide kinds of silicone rubber sealing strip for lamiantor, high temperature resistant Teflon cloth, etc.

| - - - - About XINGXIAO Wuxi XingXiao Hi-tech Material Co., Ltd is located in Jiangsu Wuxi.

It is close to Shanghai and Nanjing, which is very convenient for customers to come here.

Our company was founded in 2010, one of the suppliers in China to produce fiberglass fabric, fireproof coated fiberglass fabric, fireproof & insulation thread, rope, sleeve, fireproof blanket & suit, and detachable non-metallic connector and cover.

Our Services 1 - Your inquiry related to our products or prices will be replied within 24 hours 2 - Well-trained and experienced staffs to answer all your inquiries in fluent English.

3 - All our products have 1-year warranties.

4 - Offering the support to solve the problem in the application or selling period.

5 - Competitive prices based on same quality.

6 - Guarantee samples quality same as mass production quality.

Our advantage 1 - Professional Insulation products suppliers 2.100% QC inspection before shipment 3 .

Best quality and Best service with competitive price.
