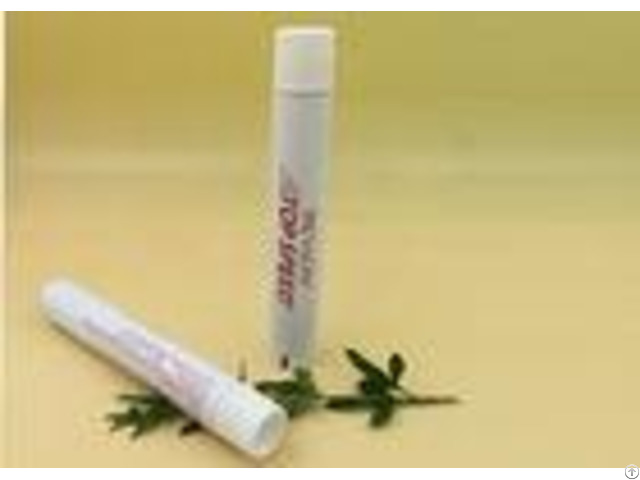

Squeeze Printed Hair Color Tube Packaging 19 Mm Diameter 40ml Volume - China

Hair Care Cream Squeeze Tube For Hair Color Packaging Quick Details: - - - - Size Standard | Diameter | Tolerance of Diameter | Length | Tolerance of Length | Nozzle | Tube Wall Thickness | Shoulder Thickness | | Max | Min | Max | Min | Shoulder Angle Standard | mm | mm | mm | mm | | mm | mm | mm | mm | | 10 | 0.1 | 60 | 0.5 | 60 | 0.11 | 0.07 | 0.5 | 0.3 | 90 or 120 or 126 | 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90 or 120 or 126 | 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120 or 126 | 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120 or 126 | 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | | 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | 28 | 165 | 1.0 | 115 | 0.15 | 0.11 | 0.75 | 0.45 | | 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | | 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | | 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | | 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | | 40 | | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | | 45 | 0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | | - - - - Quality control department is the special independent unit to ensure that meet customer needs in terms of quality, adopt international testing standards and methods, continue to upgrade testing equipment to maintain the accuracy of test results, establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, cjamhe control and product testing and quality.

- - - - Aluminum collapsible Tube Specification sheet | Fill Volume | Suggested Tube Size(diameter&height) | 2-5ml | Dia11mm*H55mm, Dia13.5mm*H70mm, | 5-12ml | Dia13.5mm*H70mm, Dia16mm*H100mm, | 19-25ml | Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request | 35-50ml | dia25mm | 60-80ml | dia30ml, 32ml | 125-150ml | dia32ml, 35ml | 150-200ml | dia35mm, 40mm | Remark: our alloy tube diameter range dia11mm to dia40mm and the height range 40mmH to 200mmH.

Please be noted that the exact capacity dpending on product formulation and filling machinery.

Test filling of actual product is suggested to determine the appropriate tube dimension | - - - -

Company Contact:

• Posted By: Hubei Xinji Pharmaceutical Packaging Co.,Ltd

• Phone: 86-138-86348698

• Address: No.177 Sanjiang Road, Duandian Town, Huarong District, 436034 Ezhou City, Hubei, China., Ezhou , Hubei , China

• Email:

• Website: https://www.aluminumpackagingtubes.com

• Business Description: Hubei Xinji Pharmaceutical Packaging Co., Ltd located in China's central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.

  Our company brought in several high speed automatic production line from Germany and Italy.
