Intelligent Solar Water Heater Controller - China

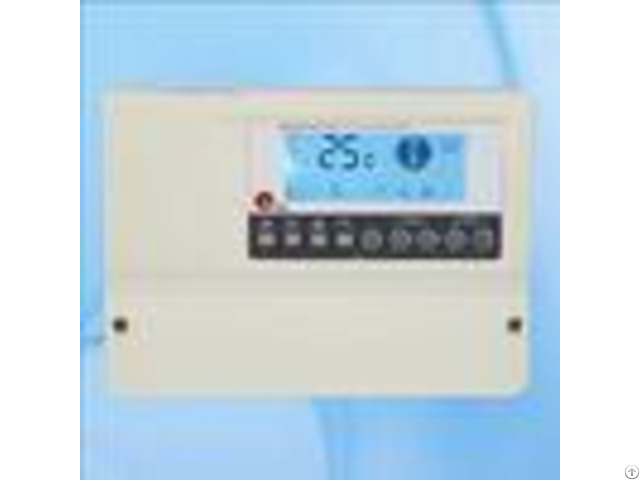

SR500 Intelligent Solar Water Heater Controller for Vacuum Tube Non Pressurized Solar System Introduction: Suitable for integrated un-pressurized solar system Main Technical data: 1 Dimension: 210 mm x 145mm x 40mm 2 Self power consumption: <3W 3 Measuring accuracy of temperature: 2 4 Temperature range of measurement: 099 5 Maximum power of controlled pump: 600W 6 Power of accompanied electrical heating wire: 800W 7 Power of auxiliary electrical booster 2000W ( standard collocation), 3000W (not standard selection available ) 8 Electromagnetic valve parameter: DC 12V AC 220V pressurized valve and un-pressurized valve are available for selection operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa suitable for providing water directly operation pressure of un-pressurized valve: 0.0Mpa connected with water tank or low pressure water providing Main Functions: 1, Time display 2, Water temperature display 3, Water level display 4, Auto mode 5, Water level pre-setup 6, Manual water loading 7, Temperature controlled water loading 8, Timing water loading 9, Water loading when tank is lack of water 10, Compulsive water loading 11, Increasing Water pressure during water is loaded.

12, Manual heating 13, Timing heating 14, Hot water circulation 15, Hot water pipe insulation 16, Low pressure protection 17, Collector tube protection 18, Memory protection when power is failure System Working Pricinple: Description: this system is water and collector integrated solar water system, it is easy for mounting, and efficiency is high.
