Pre Insulated Flexible Solar Hose Pipe - China

DN12 SingleEPDM Pre Insulated Flexible Solar Hose Pipe for Solar Water Heater Accessories Pre-insulated Flexible Solar Pipe Introduction: Our pre-insulated solar pipe is specially designed for solar thermal applications.

It is used to connect with solar collectors and storage tanks in a professional way, and making it compatible with modern constructions.

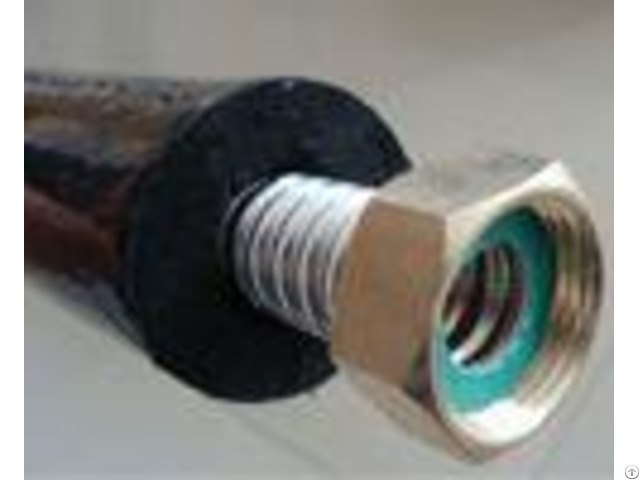

The stainless steel corrugated pipe allows the connection from the collector to the pump unit without any joints.

Some of the pipe left from the pump unit can be connected to the tank directly using extra fittings.

- - - - Model Number | Size | SS Pipe | EPDM Wall Thickness(mm) | Roll Lengths(m) | AKSG01-12-13/20 | DN12(1/2) | 316L | 13/20 | 10, 15, 20, 25, 30, 50 | AKSG01-16-13/20 | DN16(3/4) | 316L | 13/20 | 10, 15, 20, 25, 30, 50 | AKSG01-20-13/20 | DN20(1) | 316L | 13/20 | 10, 15, 20, 25, 30, 50 | AKSG02-12-13/20 | DN12(1/2) | SUS304 | 13/20 | 10, 15, 20, 25, 30, 50 | AKSG02-16-13/20 | DN16(3/4) | SUS304 | 13/20 | 10, 15, 20, 25, 30, 50 | AKSG02-20-13/20 | DN20(1) | SUS304 | 13/20 | 10, 15, 20, 25, 30, 50 | - - - - Introduction pre insulated flexible solar hose only require 1 step to finish the Solar Water Heater Pipe Installation.

Our pre-insualted flexible stainless steel Solar Hose with high temperature EPDM insulation pipe.

Strong Jacket protection and 2-core temperature sensor cable pre assemble.

It is an ideal choice for your solar thermal system.

It realizes the fast pipe connection among solar collectors, the pump station and the water tank.

Non-welding required.

The system is light weight and space saving, which is easy to handle, even in confined spaces.

Flow and return pipes are marked clearly and can be easily distinguished.

Smart Design- Break Point does good to installer separate twin pipes into 2 pipes without any destroy of the jacket protection, meeting the installation demand very well.

Application Piping systems for solar hot water, heating, heat pumps and air conditioning technology indoor, outdoor or underground piping system.

Structure Twin flexible solar hose: It consisting of high temperature resistance EPDM insulation, 2 x flexible corrugated stainless steel tubes (feed and return), UV-resistant, Silicone-sensor line, seamless jacket protection.

Single flexible solar hose: It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube, UV-resistant, seamless jacket protection.

Single flexible solar hose with Temperature Sensor Cable It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube (feed and return), UV-resistant, Silicone-sensor line, seamless jacket protection.

Twin Flexible Solar Hose Features Specifically designed for solar thermal panels.

Each coil includes both the feed and return pipes.

Easy to distinguish the feed pipe and return pipe.

Our Sensor cable is on one side of the twin pipe, which is easy to distinguish the feed pipe and return pipe line Flexible high-grade corrugated stainless steel tube 316L(or 304).

Maximum pressure up to 17.5 bar, Rated burst pressure 200 bar, food grade, passed 500hours UV test, annealing heat treatment.

100% Genuine EPDM insulation pipe.

Light, flexible, closed cell, synthetic caoutchouc.

free of PVC and non- CFC.

Very good ozone resistance, UV-resistant.

Work Temperature range from -200C to 150C, Max to 175C.

Seamless UV resistant Jacketing coated on the insulation pipe is with a super high density water proof polyolefin copolymer foil.

have excellent performance of UV-resistance, of strong tenacity performance, water proof, Machinery destroy-Protective and bird peck-Protective, passed 500hours UV test Coil length is available in 10, 15, 20, 30, 60 meters.

Other length is available upon customer's request Save money.

Easy connection, no soldering required, Saves installation time, reduction costs.

Each Twin pipe can be separated from the joint point into 2 complete single pipes according to the installation requirements.

Save time, Save space, Save labor cost, Realize the fast, easy and reliable solar pipes installation
