Solar Thermal Pump Station Copper Pipe - China

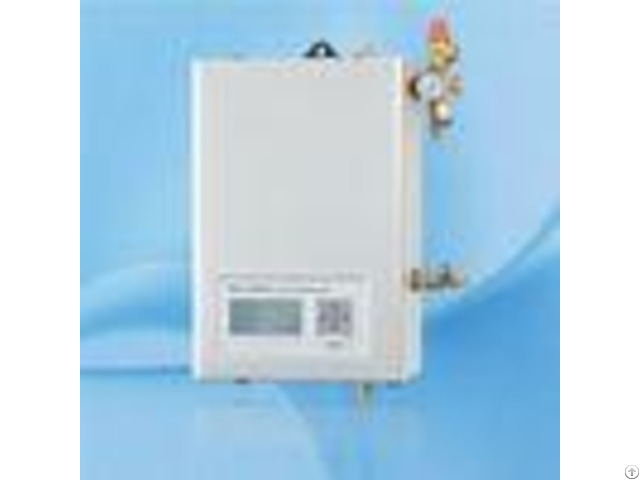

Solar Pump Station SR961S for Split Solar Water Heater System including Controller and Pump Specification Max.

number of collectors: 1 Max.

number of storage tanks: 1 Max.

number of relays: 3 Max.

number of sensors: 5 Max.

number of application system: 1 Technical data: Dimension: 420mm*280mm*155mm Power supply: 200V-240V AC or 100V-130V AC50-60Hz.

.

Power consumption: < 3W Accuracy of temperature measuring: 2oC Range of collector temperature measuring: -10oC ~200oC Range of tank temperature measuring: 0oC ~100oC Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .

Suitable power electrical heating: 1 relay for 1500W(1500w-4000w must be use SR802) Inputs: 5sensors 1pcs*Pt1000 sensor (500oC) for collector (silicon cable280oC) 4pcs*NTC10K B3950 sensor ( 135oC) for tank (PVC cable 105oC) Outputs: 3 relays for circulation pumps or 3-way electromagnetic valve Ambient temperature: -10oC ~ 50oC.

Water proof grade: IP42 - FUNCTIONS: Contents Pump support: 1 - Can be support Normal Pump.

2 - Can be support High Efficiency pump.

Set up clock/week Functions operation and parameters setup (user grade) 1 THET Timing heating 2 CIRC DHW water circuilation function 3 tCYC Tempeature or time setting for DHW pump in three time sections Functions operation and parameter setup (engineer grade) 1 - DT Temperature difference for solar circuit pump 2 - EMOF Maximum switch-off temperature of collector (for collector emergency close function) 3 - CMX Maximum limited temperature of collector (collector cooling function) 4 - CMN Low temperature protection of collector 5 - CFR frost protection temperature of collector 6 - SMX Maximum temperature of tank 7 - REC Recooling temperature of tank 8 - CF Switch between Celsius and Fahrenheit FUN Auxiliary functions 1 - DVWG Anti legionnaires' function 2 - P1 Pump P1 operation mode selection 3 - nMIN Pump speed adjustment(RPM control) 4 - DTS Standard temperature difference of pump (for speed adjustment) 5 - RIS Gain for circulation pump (speed adjusting) 6 - Pump P2 operation mode selection 7 - FTYP Flow meter type selection 8 - OHQM Thermal energy measuring 9 - FMAX Flow rate 10 - MEDT Type of heat transfer liquid 11 - MED% Concentration of heat transfer liquid 12 - INTV pump Intermission function 13 - tSTP Pump interval run-off time 14 - tRUN Pump interval run-on time 15 - AHO /AHF Automatical thermostat function 16 - COOL Tank cooling function 17 - BYPR Bypass function (high temperature) 18 - HND Manual control 19 - PASS Password set 20 - LOAD Recovery to factory set 21 - ON/OFF Controller switch on/off button 22 - Holiday function 23 - Manual heating 24 - Manually control DHW pump 25 - Temperature checking function 26 - Protection function 27 - Memory protection 28 - Screen protection 29 - Pump dry running protection 30 - Trouble shooting 31 - Trouble protection 32 - Trouble checking
