Wilo Circulating Pumpcast Iron Casing - China

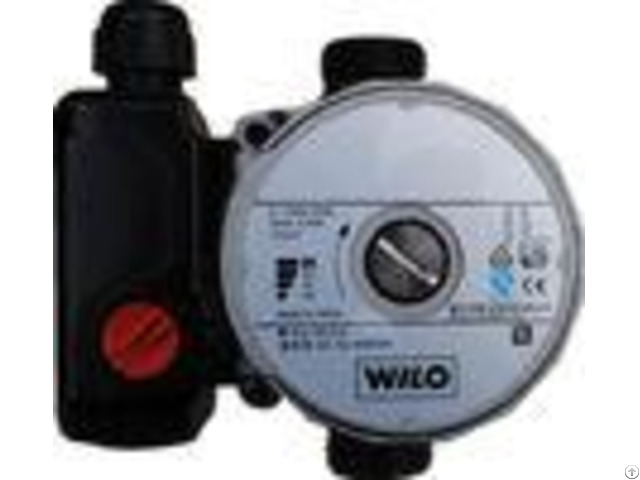

Solar Water Heater Accessories RS15/6 Wilo Circulating Pump for Solar Collector and Solar System DESCRIPTION Detailed Product Description: Circulate Pump For Solar Heating Systems Identification Code E.g. : RS 25/6 RS : Screwed-end pump 25/ : Connection size 6 : Rated shut-off head [m] Identification Code : E.g. : RS 25/6 RS : Screwed-end pump 25/ : Connection size 6 : Rated shut-off head [m] - - - - Place of Origin | China | Model Number | Circulate Pump | Price Terms | FOB, CIF | Brand Name | Sunlight & OEM | Payment Terms | T/T, L/C | Minimum Order | 1 sets | Supply Ability | 2, 500sets/month | Delivery Time | 7 days | - - - - Motor Data Single phase motor (EM) 2-(pole)-1~230V, 50Hz - - - - Item NO.

| Rated Power P 2 max.

W | Steps/Speed d n 1/p.

m | Power inpt P1 W | Current I A | Capacitor F/v | Motor Protect | RS25/2 RS30/2 | 9 4 2 | - - - - Max | 1900 | | 1600 | eco | 1100 | - - - - | - - - - 46 | 49 | 30 | 34 | 19 | 21 | - - - - | 0.21 0.15 0.09 | 1.6/400 | 1) | RS25/4 RS30/4 | 22 13 7 | - - - - Max | 2000 | | 1650 | eco | 1200 | - - - - | - - - - 56 | 68 | 40 | 48 | 27 | 32 | - - - - | 0.28 0.20 0.13 | 2.0/400 | 1) | RS25/6 RS30/6 | 37 22 12 | - - - - Max | 220 | | 1900 | eco | 1200 | - - - - | - - - - 77 | 99 | 56 | 75 | 41 | 50 | - - - - | 0.41 0.31 0.24 | 2.6/400 | 1) | - - - - 1) Non-overloading motor-No extemal overload control required.

Always refer to name plate date.

Technical Data Manual 3-speed control Fluid temperature range: -10-+110 Max.

Working prossure: 10 bars 3 - Ambient Temperature Permissible up to: 40 4 - Power Mains power: 1~230V, 50Hz 5 - Motor Degree of protection: IP42 Insulation class: 1 Interference emission: EN 50081-1 Interference resistance: EN 50082-2 6 - Construction Materials Pump body: cast iron Impeller: GF-PP Shaft: stainless steel Bearings: graphite Scope of supply Pump incl.

2 union washers, packing and O&M manual Accessories Union connector fittings, thermal insulation Mounting Positions Pump shaft in the horizontal plane, terminal box optionally 3, 6, 9 or 12oclock Pump Equipment Screwed end single head pump Manual 3-speed control Non-overloading single-phase motor Optional left or right cable entry Special design versions RS25/4 and RS25/6 Bronze body, 180mm port-to-port Cast iron body 130 mm port-to-port Measurement-weights - - - - Item NO.

| Rp | G | l 0 | l 1 | l 3 | l 4 | a | b 1 | b 2 | b 3 | b 4 | Weight ca.

kg | mm | I'N10 | RS25/2 | 1 | 1 1/2 M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.4 | RS30/2 | 1 1/4 | 2 M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.6 | RS25/4 | 1 | 1 1/2 M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.4 | RS30/4 | 1 1/2 | 2 M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.6 | RS25/6 | 1 | 1 1/2 M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.4 | RS30/6 | 1 1/4 | 2 M | 180 | 97 | 90 | 79 | 33 | 100 | 92.5 | 54 | 73 | 2.6 | - - - -
