Cr2 Cylindrical Li Mno2 Battery With High Power - China

Product Type

Lithium Manganese Dioxide Battery (Li-MnO2 battery)

Li-MnO2 Battery Key Features

High and stable working voltage

Low self-discharge rate (annual self-discharge rate less than 2% at 25℃)

High energy density (400wh/kg)

Nickel-plated steel housing

Airtight guarantee

Comply with IEC60086-4 safety standard

No transport restrictions

Basic Parameters

Item Subject Features Remark Specification CR2 Norminal voltage 3.0V Nominal discharge current 5mA Norminal capacity 850mAh 1mA, 25±3℃, cut-off at 2.0V Max.

continuous discharge current 850mA Max.

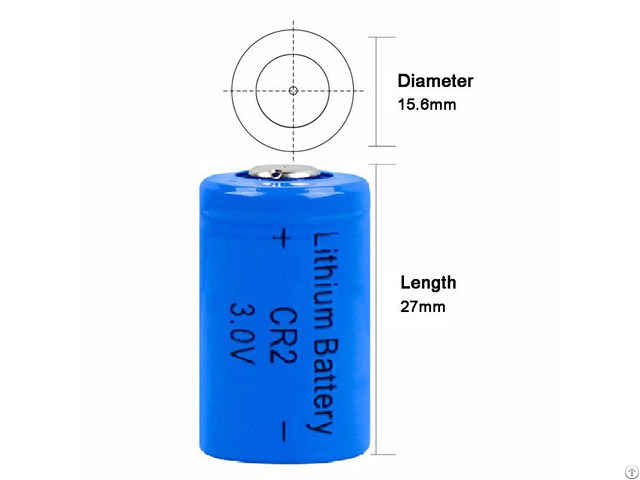

available pulse current 1500mA Operating temperature -40℃~+70℃ Dimension φ15.5x27.5 See attached figure Standard weight About 13g Annual self-discharge rate ≤2% 25±3℃, RH 65±10%

Company Contact:

• Posted By: SUNJ ENERGY( LUOYANG ) Co., LTD

• Phone: 86-0379-65289929

• Address: No. 36, Binhe North Road, High-tech Zone, Luoyang Area, China (Henan) Pilot Free Trade Zone, Luoyang , Henan , China

• Email:

• Website: https://www.sunjbattery.com/

• Business Description: SUNJ ENERGY (LUOYANG) CO., LTD. was founded in 2017, covering an area of 33,300m2 with a total investment of $42 million in LUOYANG, China.

  SUNJ is committed to R&D, manufacturing and sales of 3.6V Lithium Thionyl Chloride (Li-SOCl2) b atteries, 3.0V Lithium Dioxide Manganese (Li-MnO2) b atteries and EPC super capacitor.

  Equipped with 38 advanced production lines, with capability of 216 million PCS batteries annually.

  Our cylindrical lithium batteries are widely used in smart Meters, Medical Apparatus, Scientific Instruments, Automotive Electronics, Alarm and Safety systems, Remote Data Acquisition System, Petroleum and Mine Exploration, GPS positioning, electronic pressure gauge, flow meter, TPMS, LORAWAN NBIOT smart meters, RFID, RAM and CMOS circuit, geothermal heat detector, sonar, various force stations and other intelligent devices.

  As a professional lithium ion battery supplier, SUNJ technical team is composed of lithium primary battery research experts in this field for over 30 years.

  SUNJ sets up municipal Primary Lithium Battery Standardization Module R&D Center and R&D centers for LiSOCl2 battery, LiMnO2 battery and EPC composite capacitor.

  Meanwhile, SUNJ makes strategic cooperation with many scientific research institutes and universities.

  SUNJ is ISO9001, ISO14001 and ISO45001 certified and is SGS certified Company.

  The related lithium ion battery cells passed CE, RoHS, MSDS, UN38.3 and Explosion Protected certifications by GB8897.4.
