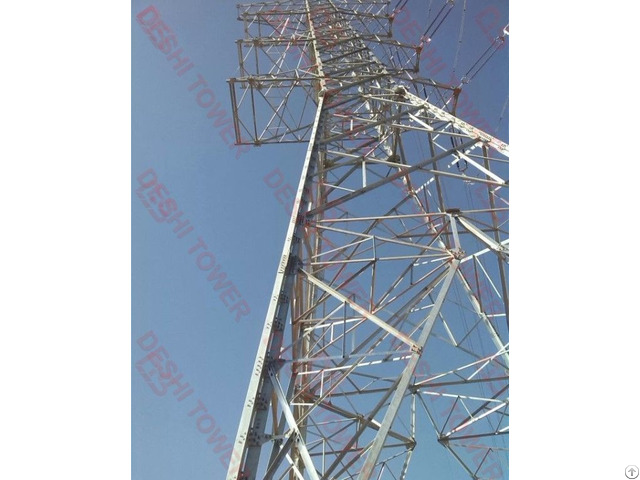

Large Power Line Towers - China

Large power line towers, also known as high-voltage transmission towers, are critical infrastructure components designed to transport electricity over long distances from power plants to local distribution networks.

These towers are engineered to handle much higher voltages than the distribution towers, often carrying tens of thousands to hundreds of thousands of volts.

Their design and construction are pivotal for ensuring the efficiency and security of the power transmission system.

Characteristics of Large Power Line Towers:

Structure and Materials: These towers are typically made from galvanized steel or aluminum, chosen for their strength and resistance to corrosion.

The structures can be enormous, often reaching heights of up to several hundred feet to accommodate the higher voltages and ensure safety and clearance over terrain and other obstacles.

Design: The most common designs for these towers include lattice structures, which offer high strength-to-weight ratios and reduced wind resistance.

This design also allows for various configurations of the power lines, depending on the number of circuits and the voltage being transmitted.

Voltage Capacity: Large power line towers are designed to carry high voltages, typically in the range of 69kV to 765kV and sometimes even higher.

This high voltage transmission is crucial for minimizing energy loss over long distances.

Installation and Functioning:

Installation: Erecting these towers involves extensive planning and logistical coordination.

Foundations must be deep and strong, especially for towers in unstable soil conditions or in high-wind areas.

The assembly might require large cranes and specialized equipment, particularly in remote or difficult-to-access locations.

Functionality: These towers support multiple high-voltage transmission lines.

Each tower typically carries insulators made from materials like glass or ceramic that are designed to withstand the environmental and operational stresses.

The towers also incorporate grounding wires to protect the lines from lightning strikes.

Importance in the Energy Grid:

Efficient Energy Transmission: By transmitting electricity at high voltages, power companies can reduce the energy lost as heat, making the process more efficient and economical.

Grid Stability and Reliability: These towers are a backbone of the national grid, contributing to the stability and reliability of power supply across vast distances, ensuring that energy can be shared between regions and even across countries.

Environmental and Visual Impact:

While essential for modern energy needs, large power line towers can have significant visual and environmental impacts.

They often traverse scenic areas and wildlife habitats, leading to concerns about landscape disruption and ecosystem disturbances.

Efforts to mitigate these impacts include careful route planning, environmental impact assessments, and in some cases, burying power lines at substantial cost.

In summary, large power line towers are foundational to the functioning of national and regional power grids, enabling the efficient, high-volume transmission of electricity across great distances.

Their design, installation, and maintenance are crucial for ensuring that electricity remains reliable and available on demand across diverse geographies.

Product large power line towers

Shape lattice

Material Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm².

OR Q420 Q460 ASTM A572 GR65, GR50, SS400

Electric Voltage 10kv, 11kv, 32kv, 33kv, 35kv, 65kv, 66kv, 90kv, 92kv, 110kv, 115kv, 132kv, 220kv, 230kv, 300kv, 320kv, 330kv, 345kv, 380kv, 400kv 500kv, 750kv, 765kv, 800kv, 850kv, 1000kv, 1100kv

Surface treatment Hot dip galvanized Following ASTM A 123, BS729 or as client required.

connection bolt connection

Standard ISO 9001: 2008

Height: below 60 meters

Surface treatment: galvanization and color painted

Welding Standard AWS (American Welding Society ) D 1.1

Production Process Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating, painting →Recalibration →Packages

Packages Packing with plastic paper, steel box or according to client’s request.

Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.

Transmission tower design adheres to ASCE/SEI standards.

Telecommunication tower design follows ANSI/TIA-222 standards.

We are not just manufacturers and suppliers, but also your technical support and partners.
