Vibration Damper Armour Rod - China
price: contact company for price

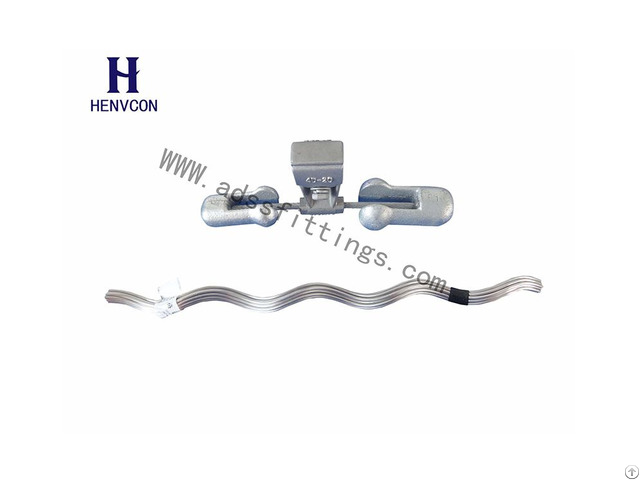

Vibration Damper/ Armour Rod
Vibration Damper Armour Rod
Preformed Cable Fittings
1 - Usage and characteristics
4D Vibration damper is composed of two different weight hammers stranded galvanization steel wire with high elasticity and high-intensity, and aluminum alloy clamp.
The 4D series Vibration dampers we provided are Stock-bridge Tuning Fork, with four resonant frequencies, the frequency range is from 3Hz to 150Hz.
with wide frequency range, the 4D vibration damper can highly consume vibration energy, and effectively dissipate the energy caused by cable Aeolian vibration, reduce cable vibration horizontal, extend the cable service life.
Vibration Damper can be installed on both OPGW and ADSS cable.
Armor rods are needed when it is installed on OPGW and ADSS cable.
Armor rods are also called Vibration damper hyperactive rods.
Because of the concentrated stress, vibration damper will cause some damages to the cable.
the armor rods provide proper stress distribution on the optical cable and protect the cable.
2 - Product Specification
Model Clamp Dia.
Range(mm) Min.
(mm) Max.
(mm)
4D-20-14.0 12.2 14.0
4D-20-16.0 14.0 16.0
4D-20-18.0 15.0 18.0
4D-20-20.3 16.5 20.3
4D-20-23.4 19.5 23.4
4D-20-27.0 22.3 27.0
4D-30-14.0 12.2 14.0
4D-30-16.0 14.0 16.0
4D-30-18.0 15.0 18.0
4D-30-20.3 16.5 20.3
4D-30-23.4 19.5 23.4
4D-30-27.0 22.3 27.0
3 - Packing /shipping/ Terms of Payment
Packaging: preformed guy grip according to the concrete product cartons, wooden cases(as customer's requirements)
Delivery: usually, it will take about two weeks for the order of 10000 sets for production
Terms of Payment: By T/T
4 - The product is also named what in form as follows:
Preformed helical fittings aluminium stockbridge
Cable Stockbridge damper
cable fitting stockbridge damper
Company Contact:
- Phone: 86-0769-87123060
- Address: No.20 Technology Road,Qiaotou Town,Dongguan City, Dongguan , Guangdong , China
- Email:
- Website: http://www.adssfittings.com/
Published date: July 18, 2018
- Business Description: Guangdong Henvcon Electric Power Technolohgy Co., Ltd. The company operating as one, is a professional production Preformed cable fittings and line fittings manufacturing enterprises, the company operates in the fields of electric power, telecommunications, railways, etc.
Companies modern scientific management, achieved remarkable economic benefits.
