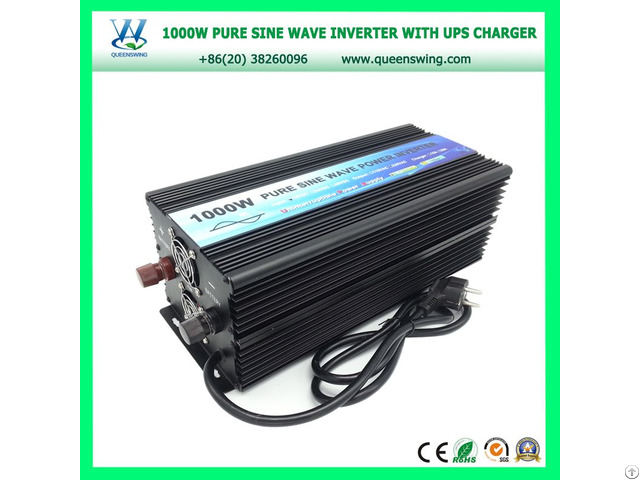

1000w Pure Sine Wave Power Inverter With Ups Charger Qw P1000ups - China

1 - Technical Parameter:

Input:

Input voltage: DC12V/DC24V/DC48V

Working Voltage:

DC10V-15V/DC20V-30V/DC 40V-60V

Input current: 83A/41.67A/20.83A

Standby input power: <15W

Start no load current: <0.5A

Output:

Rated power: 1000W

Peak power: 2000W

Efficiency: >85%

Output voltage: AC110V/220V+/-5%

Output frequency: 50/60Hz+/-1%

Output current: 9A/4.5A

Output waveform:

Pure Sine Wave

UPS Charging function:

Charging current: 10-15A/5-10A/ 2-5A

Input AC charging voltage: 180V-240V

Charging output no-load voltage: DC14.2V-14.5V/DC27.5V-28 - 5V/DC55.0V-56.5V

Charging output power: 100W-150W

Charging plug type: European plug

Charging way: 4 stages: pre-charge, man-charge, float-charge and full charge

Output mode: Mains preferred

Switch time: ≤10ms

Protection:

Reverse connection protection: fuses burne

Low input voltage alarm: 10.1V+/-0.3V/20.5V+/-0.3V /42V+/-1V

Low input voltage protection: 10.7+/-0.3V/20.1+/-0.3V/ 40+/-2V

High Input voltage protecton: 15V+/-1V/30V+/-1V/60V+/-2 V

High temperature protection: ≥70ºC

Over load protection: >1200W

Short circuit protection

Digital display Indicator:

Inverter woking: green light on

Inverter problem: no 110V/220v display

Charging indicator: digital of voltage up slowly

Charging process indicator: digital display charging voltage

Turn off the switch when charging which charging battery faster

Protection alarm:

Low input voltage alarm: buzzer

Low input voltage protection: no display, buzzer and inverter stop working

High input voltage protection: no output voltage display, have input display, inverter stop working.

Over load protection: voltage drop to 55V-140V

Abnormal temperature: no AC display, buzzer and stop working.

Environment:

High temperature protectioin: ≥70ºC

Working Temperature: -10ºC~40ºC

Cooling mode: Intelligent Temperature control Fan

Package included:

1* QW-P1000UPS

1* battery clamp

1* spare part

1* english user manual

1* standard packing box

6 - Warranty: 12 months

Quality stanstard: CE, RoHS

2 - FAQ:

1 - What is power inverter?

Inverter is an electronic equipment that turn DC12V/24V/48V into AC110V/220V/230V/240V.




2 - How many kinds of output wave form for Inverters?

Pure sine wave power inverter: It could supply high-quality AC to operate popular electronic appliances and sensitive loads.

Modified sine wave power inverter: It can load ordinary electroni appliances but except for sensitive load, and its price is lower than pure sine wave inverter's.
