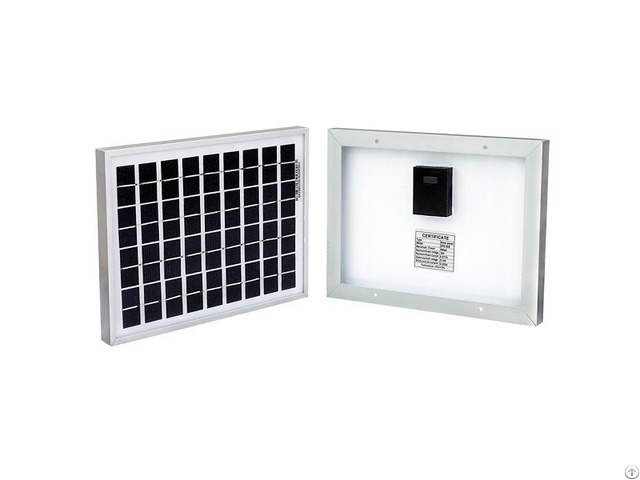

5w 12v High Efficiency Polycrystalline Solar Panel - China

The Eco-Sources polycrystalline solar panel composed of the multi-crystal solar cell with an efficiency of over 17%.

All Eco-Sources rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions.

The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation.

This translates to both more wattage per square foot and lowers mounting structure cost.

Features

1 - Widely used on small dry camp and off-grid lighting applications

2 - Easy Installation with the pre-drilled hole.

3 - Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

4 - Resistance to Salt Corrosion and Humidity.

5 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

6 - Warranty: 5-year material and workmanship warranty.

Specification

Rated power 5W

Voc 22.41V

Vop 17.9V

Short circuit current (Isc) 0.3A

Working current (Iop) 0.28A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃to +80℃

Frame Heavy duty aluminum

Guarantee of power 90% within 10 years 80 within 25 years

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 255×194 x15(10*7.6*0.6in)

Net Weight 0.58kgs(1.3lbs)

Quality Assurance Testing

1 - Thermal cycling test

2 - Thermal shock test

3 - Thermal/Freezing and high humidity cycling test

4 - Electrical isolation test

5 - Hail impact test

6 - Mechanical, wind and twist loading test

7 - Salt mist test

8 - Light and water-exposure test

9 - Moist carbon dioxide/sulphur dioxide
