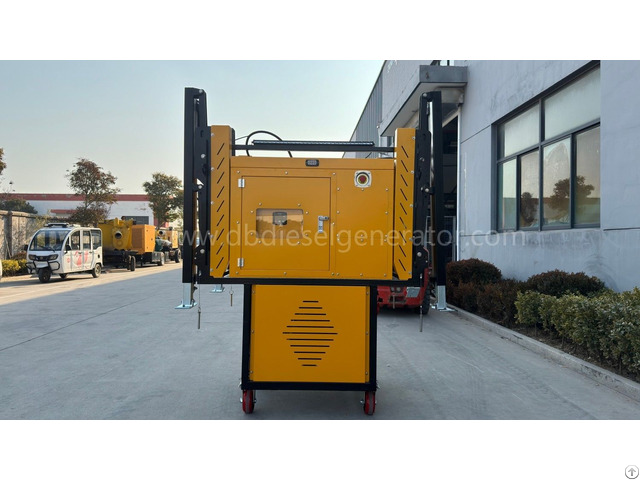

Auto Loading And Unloading Mobile Emergency Drainage Cabins - China

The emergency drainage cabin is a mobile drainage device that can be quickly installed and disassembled.

The self-loading and unloading drainage cabin is composed of a generator set, a submersible pump, a control box, a caster, a frame, a fuel tank and an automatic electric lifting device.

It can be transported to the scene after a disaster quickly and remove the water accumulation in the affected area with its powerful drainage capacity to reduce the impact of the disaster.

Meanwhile, the drainage cabin also has functions like power generation and lighting, which can provide necessary power support for the disaster areas even at night.

1 - With flows of 350m³/h and 500m³/h and head of 8m to 10m.

2 - Optional gasoline generator set or diesel generator set, with a power capacity of 18kw and 30kw.

3 - Self-loading and unloading drainage cabin is small in size and light in weight.

4 - This is a reasonably structured drainage cabin.

Its enclosure is made of high quality galvanized steel plate with thickness not less than 2.0mm.

Each steel plate has been sandblasted for rust prevention and anti-corrosion and used 300 degrees high temperature spray paint process.

The equipment is equipped with a water pump cabin, a water hose cabin and a generator set cabin, which can meet the observation, operation, overhaul and maintenance of the genset control system.

5 - Self-loading and unloading drainage cabins are suitable for pickups or minivans and can be unloaded and loaded quickly.

6 - Handling mode: The electric support legs lift the equipment to facilitate the vehicles to transport the equipment.

7 - Method of unfolding and folding the loading and unloading legs: Electric or remote control
