Eco Worthy 100 Watt Solar Panel 12v Off Grid Rv Boat Kit With 20a Lcd Controller - USA

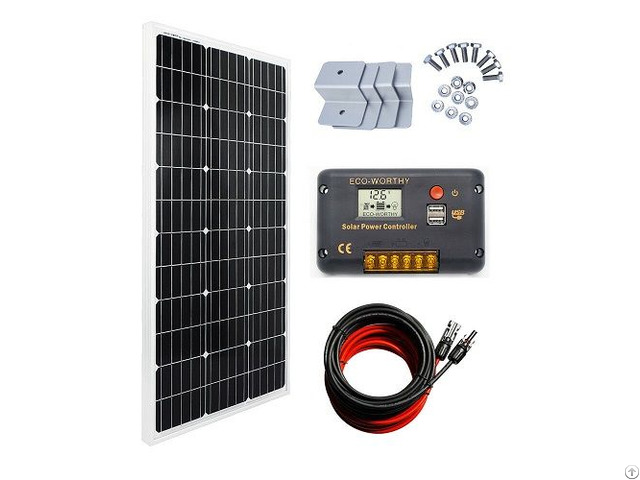

Package Included 1pcs 100W Monocrystalline Solar Panel

1pc 20A CMG Solar Charge Controller (12V/24V autodetect)

1set Z Style Mounting Kit

5meters 12AWG (4mm²) extension solar cable with MC4 quick connector ( one red and one black) USA, EU, Australia, Usually Ships in 3 to 5 Working Days ECO-WORTHY 100W PWM Off-Grid RV Kit This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system.

Even on cloudy days, the solar panel delivers a high energy yield.

The panel is covered by a special tempered glass to protect against environmental conditions such as hail, snow and ice.

The panel frame made of anodized aluminum ensures the stability.

100W 12V Monocrystalline Solar Panel 1 - Easy installation with pre-drilled hole

3 - By-Pass diode minimized the impact of shade

4 - Waterproof IP-65 rated junction box: advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets)

5 - Resistance to salt corrosion and humidity

6 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)

7 - Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned) New Compact Design 100 Watt 12 Volt Monocrystalline Solar Panel 100W Specification

Rated power 100W

Voc 21.6V

Vop 18V

Short circuit current (Isc) 6.13A

Working current (Iop) 5.78A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 1210mmx541mmx35mm (47.6*21.3*1.4 In) Weight 11KG(24.3lb)

Warranty 25-year transferable power output warranty:

5-year/95% efficiency rate; 10-year/90% efficiency rate;

25-year/80% efficiency rate;

5-year material and workmanship warranty
