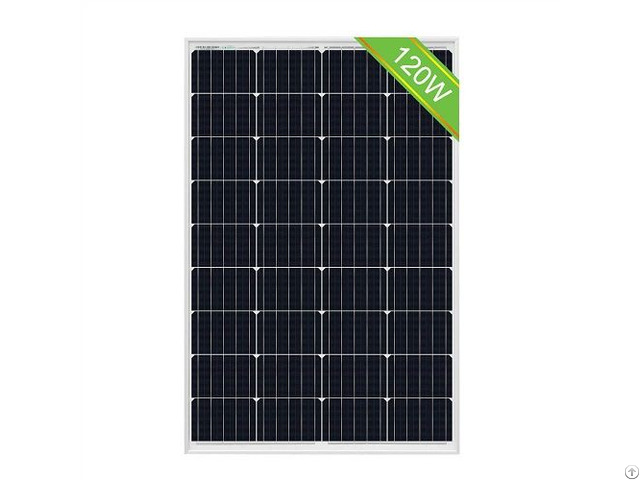

Eco Worthy 120 Watts Monocrystalline Solar Panel For 12v 24v Rv Home Off Grid - USA

Package Included 1pc 120W 12V monocrystalline solar panel ECO-WORTHY 120 Watts Monocrystalline Solar Panel for 12V 24V RV Home Off-Grid High in power but sleek in size, this 120W solar panel is the perfect item for off-grid applications.

Use it for your RV when camping, or during beach trips with the family, either way, this monocrystalline panel provides you with the most efficiency per space.

- Easy to install, pre-drilled holes on the back of the panel allow for fast mounting and securing.

- Corrosion-resistant aluminum frame for extended outdoor use, which allows the panels last for decades.

- Power output warranty: 5 year-95% 10 year-90% 25 year-80%.

- Outstanding electrical performance under high temperature and low irradiance conditions.

- Diodes are pre-installed in the junction box, solar panel backside with a pair of MC4 connector cable.

- High in power but compact in size can be used for RVs, boats, campers and similar applications, providing clean energy and excellent efficiency per space.

Specification

Rated power 120W

Voc 21.6V

Vop 18V

Short circuit current (Isc) 7.72A

Working current (Iop) 6.67A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 996*665*35mm(39.2"x26.2"x 1.4")

Weight 9.8kg(22lbs)

Warranty 25-year transferable power output warranty:

5-year/95% efficiency rate; 10-year/90% efficiency rate;

25-year/80% efficiency rate;

5-year material and workmanship warranty
