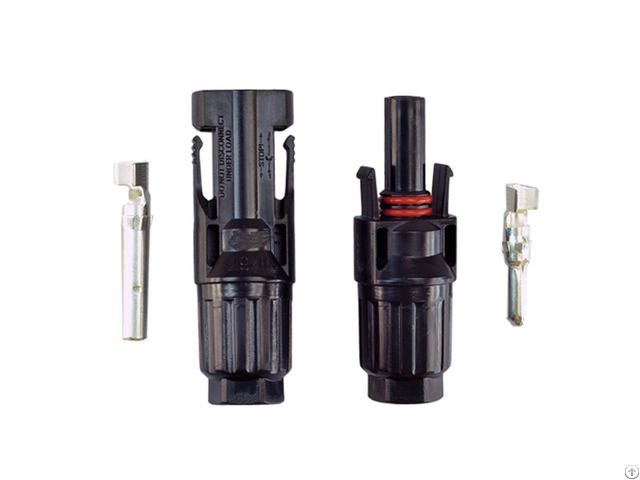

Eco Worthy Mc4 Connectors Male Female For Solar Panel System - USA
price: 3.71 Dollar US$
Package Included 1pcs MC4 male/female solar panel cable connectors (2/5/10/100sets option) China Stock Shipping Via Singapore Post Mail ECO-WORTHY MC4 Connectors Male/Female For Solar Panel System 1 - TUV certificated
2 - Anti-UV: Made from the high-quality PPO
3 - Waterproof IP-65: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets)
4 - The inside inductor: Made from cooper for good inductive efficiency
5 - Application: Can be used for solar array extend or retail at your local market
6 - Material: PPO for the outer housing, tinned copper for clips inside ECO-WORTHY MC4 Connectors Male/Female For Solar Panel System ECO-WORTHY MC4 Connectors Male/Female For Solar Panel System Specification
Rated Current 22(2.5mm), 30A(4, 6mm)
Withstanding Voltage 1000V DC
Contact Resistance Less than 0.5 Mohms
Protection Class Class II
Temperature Range -40 C ~ +90 C
Protection Degree IP2X, unmated; IP67, mated
Unmating Force 200 Newton
Wire Size Range 2.5mm², 4mm², 6mm²[AWG14, AWG12, AWG10]
Insulation Material PC/PA, black
Contact Material Copper, Sliver plated
Flame Class UL94-VO or UL94-5VA
TUV certified, fastness of male and female points with stable self-locking system, easy to lock and open
Company Contact:
- Posted By: Eco-Worthy Solar Technology Co. Ltd
- Phone: 1 415-376-0826
- Address: East 12th Street 752, Los Angeles, California , USA
- Email:
- Website: https://www.eco-worthy.com
Published date: June 10, 2019
- Business Description: ECO-WORTHY is a leading green energy company for the off-grid solar system.
We have continuously developed and innovated PV products for more than a decade, and help more than 500, 000 families set their own off-grid solar system.
