Layer 3 24 2combo Giga Poe Switch - China

S3028-P

L3 Lite Managed Gigabit Ethernet Switch with PoE Injector

Product Description:

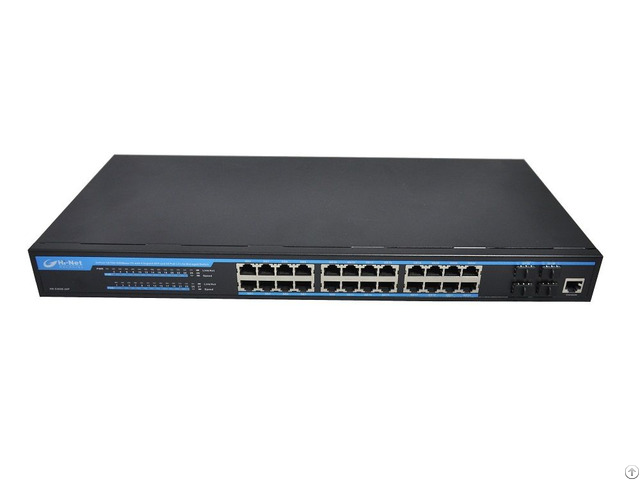

The S3028-P is a 28G L3 Lite POE switch which is designed by Shenzhen Hi-Net Technology Company based on Broadcom Chipset.

It provides 24 10/100/1000Mbps Auto-Negotiation RJ45 ports, 4 Gigabit SFP Ports and 16/24 POE ports

The S3028-P is a new generation Ethernet intelligent access switch.

It is mainly deployed on the IP MAN and intranets, meeting requirements the requirements of carrying various Ethernet services and accessing the Ethernet.

It also provide the PoE function for powering of wireless LAN (WAN) access points, IP security cameras, VoIP telephone and other low port density installations.

The S3028-P is a 19’’ case-shaped device with 1U high.

It is with the internal industrial power supplies, have three optional power supplies—250W, 400W or 500W.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Product Features:

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af IEEE802.3at

• Provides 24 10/100/1000 Base-TX ports and 4 1000 1000Base-X SFP

• Provides 8/16/24 PoE injector and build in AC power

• High back-plane bandwidth 56Gbps

• Support standard IP/ Extend IP / MAC IP / ARP ACL

• IGMP snooping and IGMP Query mode for Multi-media application

• Port mirror and bandwidth control

• Supports GVRP function

• IEEE802.3x Flow control

• Support Port Based VLAN / 802 .

1Q Tag VLAN

• Support IEEE802.3ad Port trunk with LACP

• Support Spanning tree protocol IEEE 802.1d

• Supports IEEE 802.1p class of service

• Support IEEE 802.1x user authentication

• Support Broadcast storm filter

• Support DHCP server and client

• Support System event log

• Support command line interface management

• Management by Web/SNMP/Telnet/Console

• Surge protection for power port and data ports

• EMI standards complies with FCC, CE class B

Product Specifications:

Item Description

Summarize

Fixed port 24 10/100/1000Base-TX ports.

4 1000Base-X SFP.

1 Console port.

LED Indicators PWR, PoE, 1000M and Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz

Power consumption 150W/270W/400W (130W/250W/370W for PoE).

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Built-in Noiseless FAN.

PoE

PoE port 8/16/24 10/100/1000Base-TX ports.

PoE Standard IEEE802.3af & IEEE802.3at, per port 30W(max).

Pin assignment V- (RJ45 Pin 1, 2), V+ (RJ45 Pin 3, 6).

PoE management Support Port-base PoE status view and control.

Layer 2 Switching

Switching capacity 56G

MAC address table 16K, Support MAC address table management.

MAC Address Binding Support.

MAC Address Filtering Support.

MAC Address Learning control Control number of port-based MAC address learning.

Jumbo Frame Jumbo packets up to 16 Kbytes.
