Managed 24 2combo Giga Poe Switch - China

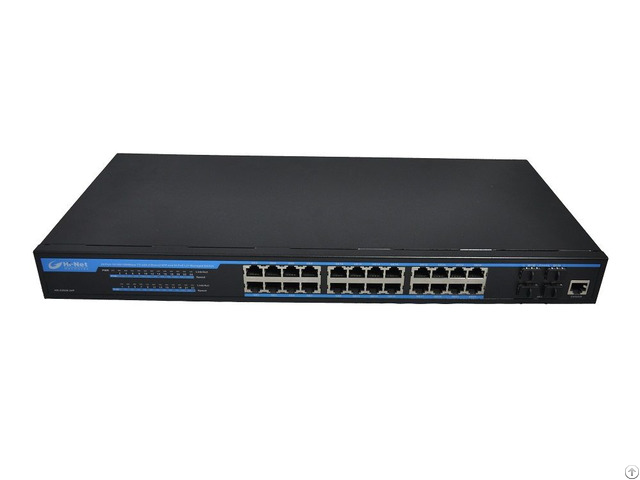

S2928-P

24 Ports Gigabit Managed POE Switch with 4 shared Gigabit SFP Ports

Product Description:

The S2928-P is a 24G Full Managed POE switch which is designed by Shenzhen Hi-Net Technology Company.

It provides 24 10/100/1000Mbps Auto-Negotiation RJ45 ports, 4 Shared Gigabit SFP Ports and 16/24 POE ports.

All the POE ports are fit the IEEE802.3af and IEEE802.3at standard.

The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras.

This model is designed by Broadcom Chipset and with the managed way by: web, telnet, SNMP and CL (control both network switch and the POE part)

The S2928-P is a 19’’ case-shaped device with 1U high.

It is with the internal industrial power supplies, have three optional power supplies—250W, 400W or 500W.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Extend Function: Power lightning protection.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 20 10/100/1000 Base-TX ports and 4 combo ports (10/100/1000 Base-T or 1000Base-X)

• Provides 16/24 PoE ports, Each POE port output 30W max power

• Build in power supplies, optional 250W or 400W or 500W

• High back-plane bandwidth 48Gbps

• Support standard IP/ Extend IP / MAC IP / ARP ACL

• IGMP snooping and IGMP Query mode for Multi-media application

• Port mirror and bandwidth control

• Supports GVRP function

• IEEE802.3x Flow control

• Support Port Based VLAN / 802 .

1Q Tag VLAN

• Support IEEE802.3ad Port trunk with LACP

• Support Spanning tree protocol IEEE 802.1d

• Supports IEEE 802.1p class of service

• Support IEEE 802.1x user authentication

• Support Broadcast storm filter

• Support DHCP server and client

• Support System event log

• Support command line interface management

• Management by Web/SNMP/Telnet/Console

• Surge protection for power port and data ports

• EMI standards complies with FCC, CE class B

Product Specifications:

Item Description

Summarize

Fixed port 20 10/100/1000Base-TX ports.

4 Combo ports (10/100/1000Base-T or 1000Base-X).

1 Console port.

LED Indicators PWR, PoE, 1000M and Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km

Forwarding Rate 10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

1000BASE-TX: 148800pps/port

Power Supplies 250W, 400W, 500W Optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Built-in Noiseless FAN.

PoE

PoE port 16/24 10/100/1000Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, Max 30W

Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

PoE management Support Port-base PoE status view and control.

Layer 2 Switching

Switching capacity 48G

MAC address table 8K, Support MAC address table management.

MAC Address Binding Support.

MAC Address Filtering Support.

MAC Address Learning control Control number of port-based MAC address learning.

Jumbo Frame Jumbo packets up to 16379 bytes.

Port Feature Port Control.

Port Isolation.

Port Self-loop Detection.

Port Mirroring Support.

VLAN 4K 802.1q VLANs, Support Ingress filter.

Link Aggregation Up to 8 maximum aggregation groups, each containing up to 8 GE ports.

Traffic control IEEE 802.3x full-duplex flow control.

Rate Limit Unit: 64kbps.

Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Ring Protocol Support EAPS.

Multicast Support 256 Multicast groups.

Support IGMP Snooping.

Layer 3 Switching

Static ARP Support.

Static Routing Support.

L3 VLAN interface Up to 32 L3 VLAN Interface.

Convergence

QoS 4 output queues on each port.

Support flexible queue scheduling algorithms: WRR, Q+WRR.

Support port-based / MAC-based / 802.1p / DSCP classification.

Security

ACL Support Standard IP / Extend IP / MAC IP / ARP

Support 512 entries

Security Features Support MAC-based 802.1X authentication.

Support AAA/RADIUS authentication.

Support WEB/Telnet password protection.

Support Accessing privilege mode password protection.

Self-protection Support CPU Self-protection.
