Poe Switch 16 Port 2combo Uplink - China

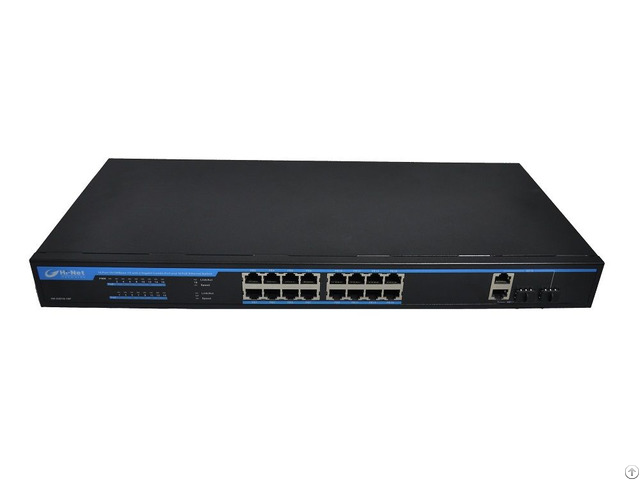

S2018-P

16+2G Ports POE Switch with internal power supplies

Product Description:

The S2018-P is a 16 ports 10/100M and two Gigabit Uplink Combo Ports POE Switch which is designed by Shenzhen Hi-Net Technology Company.

It is used for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.

It provides 16 10/100Mbps Auto-Negotiation RJ45 ports, 2 Gigabit Combo Ports( SFP+RJ45) and 8 or 16 POE ports.

The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The S2018-P is a 19’’ case-shaped device with 1U high.

It is with the internal industrial power supplies, have two optional power supplies—250W, 400W.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Extend Function: Power lightning protection, solid vlan.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 16 10/100Base-TX ports, 2 Gigabit Combo Ports( SFP+RJ45)

• Provides 8/16 PoE ports, Each POE port output 30W max power

• Build in power supplies, optional 250W or 400W

• High back-plane bandwidth 7.2Gbps

• 4K entry MAC address table of the PoE switch with auto-learning and auto-aging

• IEEE802.3x Flow control

• Surge protection for power port and data ports

• 19’’ rack-mounted size metal case for the POE switch

• Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

• EMI standards complies with FCC, CE class B

• Extend Function: Power lightning protection, solid vlan.

Product Specifications:

Item Description

Summarize

Fixed port 16 10/100Base-TX ports.

2 Gigabit Combo Ports( SFP+RJ45)

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km

Forwarding Rate 10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

1000BASE-TX: 148800pps/port

Power Supplies 250W, 400W Optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Built-in Noiseless FAN.

Switching capacity 7.2G.

MAC address table 4K.

Traffic control IEEE 802.3x full-duplex flow control.

Weight <4.5 Kg

Package S2018-P POE switch

User Manual

Power Cable

Warranty Card

PoE

PoE port 8/16 10/100Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W

Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Order Information

S2018-16P-250W 16+2G network Switch with 16 PoE ports (Total power 250W)

S2018-16P-400W 16+2G network Switch with 16 PoE ports (Total power 400W)
