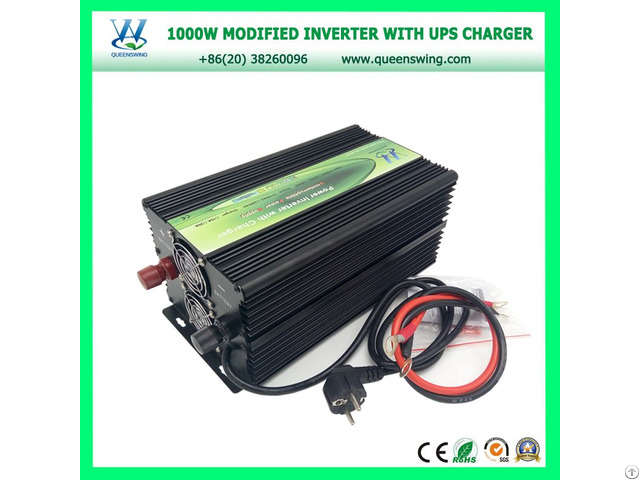

Qw M5000ups - China

Technical Parameter:

Input: Input voltage: DC12V/DC24V/DC48V

Working Voltage: DC10V-15V/DC20V-30V/DC40V -60V

Input current: 416A/208A/104A

Standby input power: <25W

Start no load current: <3.5A

Output: Rated power: 5000W

Peak power: 10000W

Efficiency: >85%

Output voltage: AC110V/220V+/-5%

Output frequency: 50/60Hz+/-1%

Output current: 45A/22A

Output waveform: Modified Sine Wave

UPS Charging function: Charging current: 10-15A/5-10A/ 2-5A

Input AC charging voltage: 180V-240V

Charging output no-load voltage: DC14.2V-14.5V/DC27.5V-28 - 5V/DC55.0V-56.5V

Charging output power: 100W-150W

Charging plug type: European plug

Charging way: 4 stages: pre-charge, man-charge, float-charge and full charge

Output mode: Mains preferred

Switch time: ≤10ms

Protection: Reverse connection protection: fuses burne

Low input voltage alarm: 10.1V+/-0.3V; 20.5V+/-0.3V; 42V+/-1V

Low input voltage protection: 10.7+/-0.3V; 20.1+/-0.3V; 40+/-2V

High Input voltage protecton: 15V+/-1V; 30V+/-1V; 60V+/-2V

High temperature protection: ≥70ºC

Over load protection: >5000W

Short circuit protection

Digital display Indicator:

Inverter woking: green light on

Inverter problem: no 110V/220v display

Charging indicator: digital of voltage up slowly

Charging process indicator: digital display charging voltage

Turn off the switch when charging which charging battery faster

Protection alarm:

Low input voltage alarm: buzzer

Low input voltage protection: no display, buzzer and inverter stop working

High input voltage protection: no output voltage display, have input display, inverter stop working.

Over load protection: voltage drop to 55V-140V

Abnormal temperature: no AC display, buzzer and stop working.

Environment: High temperature protectioin: ≥70ºC

Working Temperature: -10ºC~40ºC

Cooling mode: Intelligent Temperature control Fan

Package included: 1* QW-M5000UPS (500*170*135mm/10kg)

1* battery clamp

1* spare part

1* english user manual

1* standard packing box

FAQ:

1 - What is inverter?

Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.

2 - What is the difference between the inverter with UPS + charger and inverter with charger?

A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery.

When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.

With battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.

3 - What can a UPS do for me?

A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
