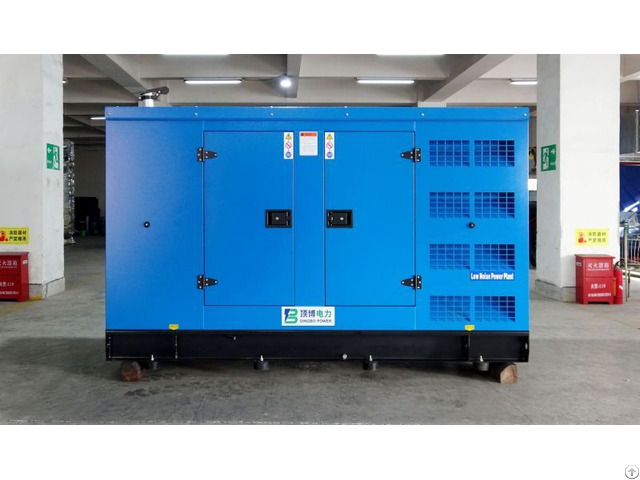

Standby Generator Low Noise Type 200kw 250kva Water Cooled Diesel Genset - China

price: 13000.00 Dollar US$

200KW 250KVA Diesel Generator Set Datasheet

Genset model DB-200GF

Prime power 200kW 250kVA

Standby power 220kW 275kVA

Rated voltage(V) 400/230 (customizable)

Rated current(A) 360A

Power factor 0.8

Frequency(Hz) 50

Speed(rpm) 1500

Phase: 3 phase 4 wire

Noise level: 105dB at 7m ( open type diesel genset) 75dB at 7m(silent type diesel genset)Engine Specifications Manufacturer Weichai

Model WP10D264E200

Engine output-prime 240kW Engine output-standby 264kW Frequency: 50Hz

Speed: 1500rpm

Cylinders no.

& Type: 6 cylinders, In line, 4 stroke, diesel engine, water-cooled

Aspiration: Turbocharged and aftercooled

Bore*stroke 126*130mm

Displacement 9.726L

Compression Ratio 17: 1

Governor Electronic speed governor

Starter motor voltage: 24V DC

Type Injection System: direct injection

Battery charger current 55A

Oil capacity: 24L

Cooling way Water Radiator & fan

Coolant capacity of the engine: 22L

Thermostat opening temperature/full open temperature 71/82°C

Max.

fuel inlet temperature 50°C

Fuel supply flow 47.81 ~53.05kg/h


Company Contact:


  • Phone: +86 771 5805 269

  • Address: No.10, Kechuang Road, GaoXin District, Nanning , Guangxi , China

  • Email: Email


Published date: October 8, 2024

  • Business Description: Guangxi Dingbo Generator Set Manufacturing Co., Ltd., founded in 2006 in Guangxi, China, is a manufacturer providing power solutions.

    We integrate the design, supply, commissioning and maintenance of diesel generator sets.

    We offer diesel generators of all sizes and types from reputable brands like Cummins, Perkins, Volvo, Yuchai, Shangchai, Weichai, Ricardo, MTU, Wuxi power etc.

    Dingbo Power caters to diverse power needs.
