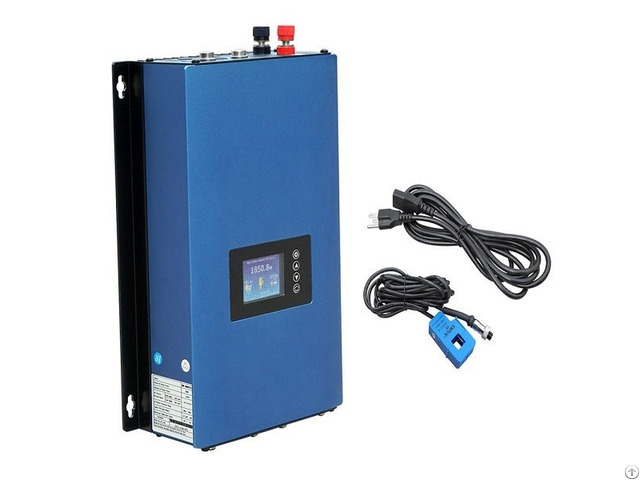

1000w Auto Switch Mppt Solar Grid Tie Inverter Power Limiter - China

1000W Grid Tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipment and connecting to the utility grid.

The AC output from Eco-Source inverter is synchronized and in-phase with the utility grid.

Please note that this grid tie inverter can’t connect with battery bank!!!

Features

1 - Low cost and easy installation–it can make full use of all types of buildings’ surface that face to the sun in the city as well as the fast and easy installation of solar modules and grid tie inverter.

It just needs very low maintenance costs

2 - Free combination — it can be used as a separate grid tie system and can be setup as a large solar array with many of them.

3 - Low power consumption, over current protection, over temperature protection, reverse polarity protection, etc.

4 - Improving the efficiency of the entire solar power system–Because of MPPT function.

So every panel is working at the maximum.

Specification

Type: 110V

Rated Power (Peak/Continuous): 1000W / 900W

DC Input Voltage: 22V~65V

AC Output Voltage Range: 90V~140V

AC Output Frequency Range: 46Hz~65Hz

Peak Inverter Efficiency: 90%

Night Power Consumption: 0.5W

Mppt efficiency: 99%

Anit-Island Protection: yes

Operating Temperature Range: -20℃~ 45℃

Storage Temperature Range: -40℃~ 65℃

Size: 41*28*15.5cm(16.14″*11â €³*6.1″) Installing Steps

1 - Considering the total capacity of the grid tie power system that you need.

2 - Choosing applicable solar panels for Sunshine Grid Tie Inverter.

3 - Selecting accessory for installation of the Grid Tie Power System.

4 - Selecting correct model of Sunshine Grid Tie Inverter.

5 - Installing solar panels in a suitable place.

6 - Installing Sunshine Grid Tie Inverter to a suitable place.

7 - Connecting Sunshine Grid Tie Power System with cables and connectors.

8 - Grounding the system.

9 - Completing Sunshine installation map and connecting the PV modules.
