100w 12v Monocrystalline Solar Panel Kit With 20a Lcd Charge Controller - China

price: contact company for price

The Eco-Sources 100W Monocrystalline starter kit is designed specifically for customers new to solar.

It is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins – providing many benefits, including, but not limited to, quiet power production and grid independence.

Features

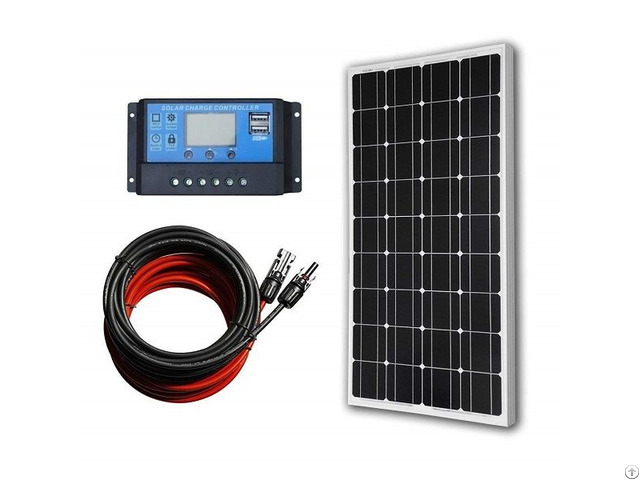

1 - Complete solar kit: 1pc 100W Mono Solar Panel + 20A PWM LCD Display Solar Controller Regulator + Solar Cable with MC4 Connectors.

Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins.

Easy to install with pre-drilled holes on the back of the panel for fast mounting and securing

2 - High modules conversion efficiency.

Ideal daily output: 500Wh (depending on the availability of sunlight).

3 - Comes with 20A PWM LCD display charge controller, you can expand your system up to a maximum of 400W.

4 - 5 meters red 4mm² extension solar cable with mc4 connector and 5 meters black 4mm² extension solar cable with mc4 connector for connecting solar panel to charge controller.

5 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the solar panel to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

Specification

100W 12V Monocrystalline Solar Panel Rated power 100W

Voc 21.6V

Vop 17.9V

Short circuit current (Isc) 6.13A

Working current (Iop) 5.78A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 1210x541x35mm

Weight 24lbs(11KG)

Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

20A LCD Charge Controller 1 - Rated Discharge Current: 20A.

2 - Easy to use: Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.

3 - Battery Voltage: 12V/24V.

4 - Auto adjustable power rate with dual USB ports.

5 - 4-Stage(EQU, Bulk, ABS, Float) charge management and 4-Stage PWM charge.

6 - Automatically manage the working of solar panel and battery in the solar system.

7 - USB Output Voltage: 5V/3A.

8 - Two USB socket can charge two devices simultaneously (Note: power from the batter, not from the solar panel)


Company Contact:


  • Phone: 86-592-3109858

  • Address: Room 401, Hongye Building, Innovation Park, Xiamen , Fujian , China

  • Email: Email


Published date: July 16, 2018

  • Business Description: Eco-Sources is one of the leading renewable energy products manufacturers, We specialize in off-grid solar & wind power system and components such as solar panels, wind turbines, batteries, inverters, charge controllers and solar trackers, also include solar appliances like solar water pump, solar street light etc.

    We have been integrating R&D, mass production, sale and service under one roof, to provide customers with high-quality products since 2007 - With more than 10 years of experience in this field and through our hard work, we have got utility model patent certificates for solar controller and solar hat.

    We insist on a management theory of customer service is the core to unceasingly improve our core competitiveness.

    We acquired advanced equipment from China and abroad, such as dust-free purification plant, automatic laminating machines, sophisticated IPQC and FQC testing machines.

    Meanwhile, we absorb in domestic and overseas technicians actively and scientific management mode constantly, thus we keep improving and innovating.

    All our efforts enable our product quality to stable and reliable.

    Now our products are exported to Africa, Europe, the US, the Middle East and Asia.

    Eco-Sources is dedicated to providing sustainable and clean energies for our clients and making contribution to environmental protection.
