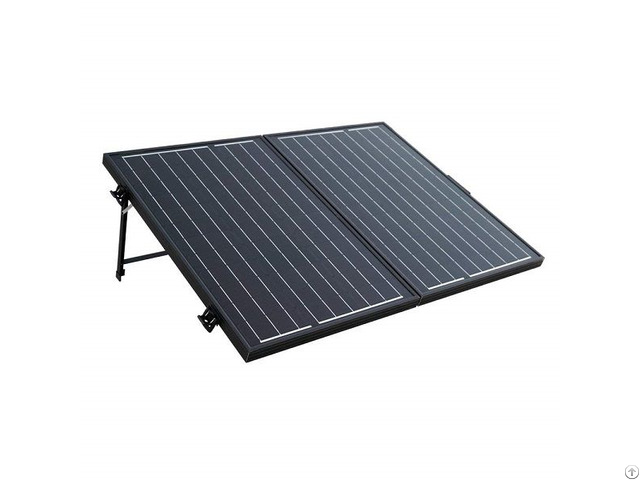

100w 12v Off Grid Monocrystalline Portable Folding Solar Panel Suitcase - China

This 100 watt foldable solar panel is made up of monocrystalline solar cells, which give you one of the most efficiency per space.

It’s a suitcase-style design with a strong handle.

You can take the solar panel kit from one place to other, by hanging it on its handle hassle-free.

It can be used for hiking, camping, and military use, off-grid solar panel system, caravan, RV, boat, Greenhouse solar system, solar pump watering system etc.

Features

1 - It is a ready-to-use plug and plays portable solar solution.

You just require folding up the solar panel and face its solar surface directly to the sun.

2 - Pre-installed controller and pre-wired for 12V DC system charging, you don’t have to add an extra controller.

3 - The plug and play system quickly starts to generate energy and you can use it to power up any 12V system.

4 - Package includes 1pc 100W Foldable Mono Solar Panel Kit (2pcs 50W mono solar panel & 1pc pre-installed 15A charge controller & 1 pair pre-installed 10ft solar cables with 1 pair 30A alligator clips & 1 set adjustable aluminum stand, handle and latches).

Specification

100 Watt 12 Volt Foldable Mono Solar Panel Kit Max Power at STC: 100W

Open circuit voltage (Voc): 22.43V

Optimum power voltage (Vmp): 17.8V

Short circuit current (Isc): 5.9A

Output Tolerance: ±3%

Solar cell materials: Monocrystalline

Frame and leg: Heavy duty aluminum

Kind of glass and thickness: Low Iron, high transparency tempered glass of 3.2mm

Dimensions Folded: 31*20*2.8in (790*510*70mm)

Weight: 26.25lbs (11.9kgs) Pre-installed 15A PWM Charge Controller Solar energy is largely unstable and the charge controller makes it unwavering so that your devices will be having a long life, in spite of long use with the solar charger panel for charging.

The integrated junction boxes are waterproof.

Specification:

Nominal output: 12V/24V

Max charge current: 15A

Max load current: 15A

Max solar panel: 270Watt/540Watt

Over discharge protection: 10.8V/21.6V

Reset: 12V/24V

Over charger protection: 14.5V/29V

Float charge: 13.8V/27.6V

Self consumption: 2mA/4mA

Size: 4.3*2.3*1.3in (110*59*33mm)

Operating temperature: -20℃~+60℃

Net weight: 0.24lbs (110g) Suitcase-Style Plug and Play Portable Solar Kit

1 - It’s a suitcase-style design with a strong handle.

You can take the solar panel kit from one place to other, by hanging it on its handle hassle-free.

Once in place, you can unfold the panels and put in sunlight to capture solar energy for unlimited power.

2 - To make it fit for rough outdoor use, the frame is made highly durable.

And it gives a long life for the solar panels.

3 - The integrated kickstand legs make the solar kit withstand high winds and snowfall, by the way.

The aluminum frames and legs are lightweight and add nothing heavy to the overall weight of the product, though.

Easy Installation

You just require folding up the suitcase-like foldable solar panel and face its solar surface directly to the sun.

The plug and play system quickly starts to generate energy and you can use it to power up any 12V DC devices.

It’s good in solar efficiency and you can rely upon it to make your companion for outings with trust.
