120w 12v Portable Polycrystalline Folding Solar Panel Kit - China

price: contact company for price

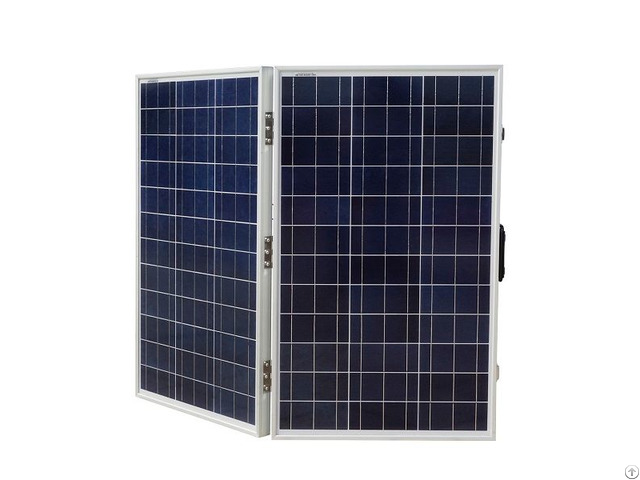

The Eco-Sources 120 Watt 12 Volt portable polycrystalline solar suitcase is an entire solar power system incorporated into a single, compact package.

This lightweight suitcase includes two 60 Watt monocrystalline solar panels with 1pc pre-installed 15A charge controller on the back, 1pair battery clip and legs, one 3m(default) or 5m cable with a positive and a negative alligator clamp for easy connection to the battery, and protective casing for safe portability.

Features

1 - Easy Operation: open up the folding solar panel, face the sun, battery clips allows for simple connection to the battery.

2 - Pre-installed controller and Pre-wired for 12V battery charging, you don’t have to add extra controller.

3 - With handle, convenient to carry.

4 - Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

5 - Resistance to salt corrosion and humidity.

6 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

Specification

Rated power 120W

Vop 17.9V

Working current (Iop) 6.66A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame and leg Heavy duty aluminum

Kind of connection waterproof junction box, can be customized

Guarantee of power 90% within 10 years 80 within 25 years

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 860*510*73mm(34*20.16*28 - 9in)

Weight (kgs) 12.7kgs(28lbs)

Application

These foldable solar panels are ideal for hiking, camping, and military use, off-grid solar panel system, caravan, RVs, boat, Greenhouse solar panel system, solar pump watering system etc.

Notes

1 - Unfold the solar panel, expose the solar panel to the south(inclination angle from 15-30 degree), 2 - Connect the appliance to the load terminal of the connector

3 - Connect the male weather pack connector with alligator clips to the female weather pack connector from the controller

4 - Clamp red and black alligator clips to positive and negative ends of the battery respectively.


Company Contact:


  • Phone: 86-592-3109858

  • Address: Room 401, Hongye Building, Innovation Park, Xiamen , Fujian , China

  • Email: Email


Published date: July 1, 2018

  • Business Description: Eco-Sources is one of the leading renewable energy products manufacturers, We specialize in off-grid solar & wind power system and components such as solar panels, wind turbines, batteries, inverters, charge controllers and solar trackers, also include solar appliances like solar water pump, solar street light etc.

    We have been integrating R&D, mass production, sale and service under one roof, to provide customers with high-quality products since 2007 - With more than 10 years of experience in this field and through our hard work, we have got utility model patent certificates for solar controller and solar hat.

    We insist on a management theory of customer service is the core to unceasingly improve our core competitiveness.

    We acquired advanced equipment from China and abroad, such as dust-free purification plant, automatic laminating machines, sophisticated IPQC and FQC testing machines.

    Meanwhile, we absorb in domestic and overseas technicians actively and scientific management mode constantly, thus we keep improving and innovating.

    All our efforts enable our product quality to stable and reliable.

    Now our products are exported to Africa, Europe, the US, the Middle East and Asia.

    Eco-Sources is dedicated to providing sustainable and clean energies for our clients and making contribution to environmental protection.
