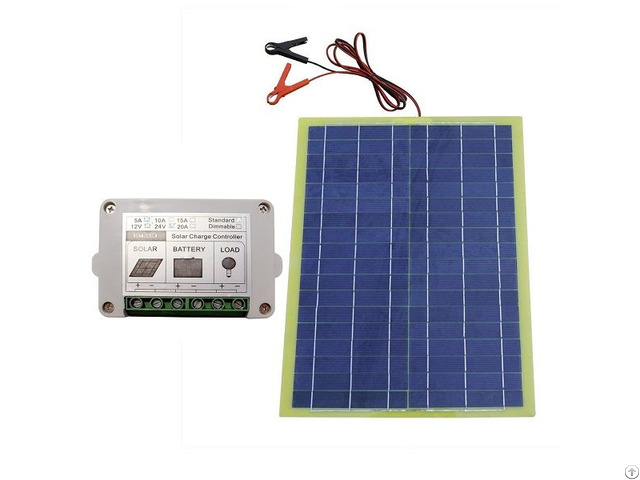

12v 20 Watts Epoxy Solar Panel Kits With 10a Pwm Charge Controller - China

The Eco-sources 20 watts epoxy solar panel kits with battery clips, can charge the 12V battery directly, it will output max 90% power on a sunny day.

Waterproof and light design, let the solar panel easy to take outdoor, you can take it to camp, hiking, and travel.

It is also a good item to teach kids how magic the sun is, and how can we save the sources of the earth.

Features

20W 18V epoxy solar panel with 10A solar charger controller, can charge the 12V battery directly, it will output max 90% power on a sunny day.

Waterproof and light design, let the solar panel easy to take outdoor, you can take it to camp, hiking, and travel.

Lightweight easy carry free sunlight charge.

Can be used for the trickle charger.

DIY your camper backpack.

Specification

20 Watts Epoxy Solar Panel

Related power: 20W

Maximum/Peak Voltage(Vmp): 17.9V

Open Circuit Voltage(Voc): 22.4V

Maximum/Peak Current(Imp): 1.14A

Short circuit current (Isc): 1.23A

Output Tolerance: ±3%

Temperature range: -40℃to +80℃

SLA Battery Voltage: 12V

Dimensions (L x W x H)mm: 450*350*2mm 10A PWM Solar Charge Controller

Model: 10A

Nominal output: 12V/24V

Max charge current: 10A

Max Load current: 10A

Max solar panel: 180W/360W

Over discharge protection: 10.8V/21.6V

Reset: 12V/24V

Over charge protection: 14.5V/29V

Float charge: 13.8V/27.6V

self consumption: 2mA/4mA

Waterproof Class: IP22

Operating temperature: -20 to +60℃
